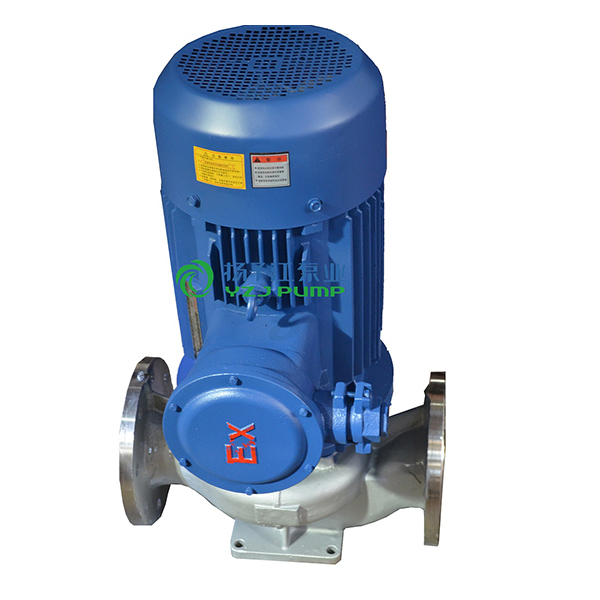

IHGB型立式不銹鋼防爆管道離心泵
1.IHGB立式不銹鋼防爆管道離心泵吸入壓力≤1.0MPa，或泵系統高工作壓力≤1.6MPa，即吸入口壓力+泵揚程≤1.6MPa、泵靜壓試驗壓力為≤2.5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6MPa時應在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2.環境溫度＜40℃，相對濕度＜40%。
3.所輸送介質中固體顆粒體積含量不超過單位體積的0.1，粒度＜0.2mm。
目錄
IHGB型立式不銹鋼管道離心泵概述
IHGB立式不銹鋼防爆管道離心泵，是揚子江泵業制造有限公司科技人員聯合國內水泵專家選用國內優秀水力模型，采用IS型單級單吸離心泵之性能參數，在一般立式泵的基礎上進行巧妙組合設計而成，同時根據使用溫度、介質等不同在ALG型基礎上派生出適用熱水、高溫耐腐蝕化工泵、油泵。該系列產品具有高效節能、噪音低、性能可靠等優點，符合新國家機械部JB/T53058-93的標準要求，產品按國際ISO2858標準設計制造。
IHGB型立式不銹鋼管道離心泵主要用途
1.ISG型立式管道離心泵，供輸送清水及物理化學性質類似于清水的其他液體之用，適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套，使用溫度T＜80℃。
2.IRG型立式熱水泵適用于冶金、化工、紡織、木材加工、造紙以及飯店、浴室、賓館等鍋爐高溫?zé)崴鰤貉h(huán)輸送以及城市住房采暖循環用泵，使用溫度120℃以下。
3.GRG型立式高溫離心泵廣泛用于：能源、冶金、化工、紡織、造紙以及飯店、浴室、賓館等鍋爐高溫?zé)崴鰤貉h(huán)輸送以及城市住房采暖循環用泵，使用溫度240℃以下。
4.IHG型立式單級不銹鋼管道離心泵，供輸送不含固體顆粒，具有腐蝕性，粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門，使用溫度為-20℃ ~ 120℃。
5.YG型管道油泵，供輸送汽油、煤油、柴油等石油產品，被輸送介質溫度為-20℃ ~ + 120℃。
6.IHGB立式不銹鋼防爆管道離心泵，適用于輸送易燃性化工液體。
7.ISGD、IRGD、GRGD、IHGH、YGD、IHGBD型立式低速離心泵，適用于環境噪聲要求很低的場合及空調循環等。
IHGB型立式不銹鋼管道離心泵產品特點
1.IHGB立式不銹鋼防爆管道離心泵為立式結構，進出口口徑相同，且位于同一中心線上，可向閥門一樣安裝于管路之中，外形緊湊美觀，占地面積小，建筑投入低，如加上防護罩則可置于戶外使用。
2.葉輪直接安裝在電機的長軸上，軸向尺寸短，結構緊湊，泵與電機軸承配置合理，能有效地平衡泵運轉產生的徑向和軸向負荷，從而保證了泵的運行平穩，振動小、噪音低。
3.軸封采用機械密封或機械密封組合，采用進口鈦合金密封環、中型耐高溫機械密封和采用硬質合金材料，耐磨密封，能有效地延長機械密封的使用壽命。
4.安裝檢修方便，無需拆動管路系統，只要卸下泵聯體座螺母即可抽出全部轉子部件。
5.可根據使用要求即流量和揚程的需要采用泵的串、并聯運用方式。
6.可根據管路布置的要求采用泵的豎式和橫式安裝。
IHGB型立式不銹鋼管道離心泵工作條件
1.IHGB立式不銹鋼防爆管道離心泵吸入壓力≤1.0MPa，或泵系統高工作壓力≤1.6MPa，即吸入口壓力+泵揚程≤1.6MPa、泵靜壓試驗壓力為≤2.5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6MPa時應在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2.環境溫度＜40℃，相對濕度＜40%。
3.所輸送介質中固體顆粒體積含量不超過單位體積的0.1，粒度＜0.2mm。
注：如果用介質為帶有細小顆粒，請?jiān)谟嗀洉r(shí)說明，以便本廠采用耐磨式機械密封。
IHGB型立式不銹鋼管道離心泵型號意義
IHGB立式不銹鋼防爆管道離心泵
例如:ISG50-160(I)A
IHGB-立式單級管道離心泵
IHGB-立式單級熱水管道離心泵
IHGB-立式單級熱水管道離心泵
IHG-立式單級不銹鋼化工泵
YG-單級單吸管道油泵
50-泵進、出口公稱直徑
160-葉輪名義外徑
I-流量分類
A-葉輪經第一次切割
IHGB型立式不銹鋼管道離心泵性能參數
高轉速：
| 型號 |
流量 (m3/h) |
揚程 (m) |
電機功率 (kw) |
轉速 (r/min) |
效率 (%) |
汽蝕余量 (m) |
| 15-80 | 1.5 | 8 | 0.18 | 2900 | 34 | 2.3 |
| 20-110 | 2.5 | 15 | 0.37 | 2900 | 34 | 2.3 |
| 20-160 | 2.5 | 32 | 1.1 | 2900 | 25 | 2.3 |
| 25-110 | 4 | 15 | 0.55 | 2900 | 42 | 2.3 |
| 25-125 | 4 | 20 | 0.75 | 2900 | 36 | 2.3 |
| 25-125A | 3.6 | 16 | 0.55 | 2900 | 35 | 2.3 |
| 25-160 | 4 | 32 | 1.5 | 2900 | 32 | 2.3 |
| 25-160A | 3.7 | 28 | 1.1 | 2900 | 31 | 2.3 |
| 32-100 | 4.5 | 12.5 | 0.55 | 2900 | 56 | 2.3 |
| 32-100(I) | 6.3 | 12.5 | 1.1 | 2900 | 54 | 2.0 |
| 32-125 | 4.5 | 20 | 0.75 | 2900 | 45 | 2.3 |
| 32-125(I) | 6.3 | 20 | 1.1 | 2900 | 43 | 2.3 |
| 32-125A | 4.0 | 16 | 0.55 | 2900 | 43 | 2.3 |
| 32-160 | 4.5 | 32 | 1.1 | 2900 | 44 | 2.3 |
| 32-160A | 4.5 | 25 | 1.1 | 2900 | 42 | 2.3 |
| 32-160(I) | 6.3 | 32 | 2.2 | 2900 | 42 | 2.3 |
| 32-200 | 4.5 | 50 | 3 | 2900 | 45 | 2.3 |
| 32-200A | 4 | 40 | 2.2 | 2900 | 40 | 2.3 |
| 32-200(I) | 6.3 | 50 | 4 | 2900 | 33 | 2.0 |
| 40-100 | 6.3 | 12.5 | 0.55 | 2900 | 54 | 2.3 |
| 40-100A | 5.6 | 10 | 0.37 | 2900 | 52 | 2.3 |
| 40-125 | 6.3 | 20 | 1.1 | 2900 | 46 | 2.3 |
| 40-125A | 5.6 | 16 | 0.75 | 2900 | 45 | 2.3 |
| 40-160 | 6.3 | 32 | 2.2 | 2900 | 40 | 2.3 |
| 40-160A | 5.9 | 28 | 1.5 | 2900 | 39 | 2.3 |
| 40-160B | 5.2 | 24 | 1.1 | 2900 | 38 | 2.3 |
| 40-200 | 6.3 | 50 | 4 | 2900 | 33 | 2.3 |
| 40-200A | 5.9 | 44 | 3 | 2900 | 31 | 2.3 |
| 40-200B | 5.5 | 38 | 2.2 | 2900 | 29 | 2.3 |
| 40-250 | 6.3 | 80 | 7.5 | 2900 | 28 | 2.3 |
| 40-250A | 5.9 | 70 | 5.5 | 2900 | 28 | 2.3 |
| 40-250B | 5.5 | 60 | 4 | 2900 | 27 | 2.3 |
| 40-100(I) | 12.5 | 12.5 | 1.1 | 2900 | 62 | 2.3 |
| 40-125(I) | 12.5 | 20 | 1.5 | 2900 | 60 | 2.3 |
| 40-125(I)A | 11.2 | 17.2 | 1.1 | 2900 | 58 | 2.3 |
| 40-160(I) | 12.5 | 32 | 3 | 2900 | 52 | 2.3 |
| 40-160(I)A | 11.7 | 28 | 2.2 | 2900 | 51 | 2.3 |
| 40-160(I)B | 10.5 | 22.5 | 1.5 | 2900 | 50 | 2.3 |
| 40-200(I) | 12.5 | 50 | 5.5 | 2900 | 46 | 2.3 |
| 40-200(I)A | 11.7 | 40 | 4 | 2900 | 45 | 2.3 |
| 40-200(I)B | 10.5 | 35 | 3 | 2900 | 44 | 2.3 |
| 40-250(I) | 12.5 | 80 | 11 | 2900 | 38 | 2.3 |
| 40-250(I)A | 11.7 | 70 | 7.5 | 2900 | 38 | 2.3 |
| 40-250(I)B | 10.8 | 60 | 7.5 | 2900 | 37 | 2.3 |
| 50-100 | 12.5 | 12.5 | 1.1 | 2900 | 62 | 2.3 |
| 50-125 | 12.5 | 20 | 1.5 | 2900 | 58 | 2.3 |
| 50-125A | 11.2 | 17.2 | 1.1 | 2900 | 57 | 2.3 |
| 50-160 | 12.5 | 32 | 3 | 2900 | 52 | 2.3 |
| 50-160A | 11.7 | 28 | 2.2 | 2900 | 51 | 2.3 |
| 50-160B | 10.5 | 22.5 | 1.5 | 2900 | 50 | 2.3 |
| 50-200 | 12.5 | 50 | 5.5 | 2900 | 46 | 2.3 |
| 50-200A | 11.7 | 44.5 | 4 | 2900 | 45 | 2.3 |
| 50-200B | 10.5 | 35 | 3 | 2900 | 44 | 2.3 |
| 50-250 | 12.5 | 80 | 11 | 2900 | 38 | 2.3 |
| 50-250A | 11.7 | 70 | 7.5 | 2900 | 38 | 2.3 |
| 50-250B | 10.8 | 60 | 7.5 | 2900 | 37 | 2.3 |
| 50-100(I) | 25 | 12.5 | 1.5 | 2900 | 69 | 2.5 |
| 50-100(I)A | 22.4 | 10 | 1.1 | 2900 | 67 | 2.5 |
| 50-125(I) | 25 | 20 | 3 | 2900 | 68 | 2.5 |
| 50-125(I)A | 22.4 | 16 | 2.2 | 2900 | 66 | 2.5 |
| 50-160(I) | 25 | 32 | 4 | 2900 | 63 | 2.5 |
| 50-160(I)A | 23.4 | 28 | 4 | 2900 | 62 | 2.5 |
| 50-160(I)B | 21.6 | 24 | 3 | 2900 | 58 | 2.5 |
| 50-200(I) | 25 | 50 | 7.5 | 2900 | 58 | 2.5 |
| 50-200(I)A | 23.4 | 44 | 7.5 | 2900 | 57 | 2.5 |
| 50-200(I)B | 21.6 | 37 | 5.5 | 2900 | 55 | 2.5 |
| 50-250(I) | 25 | 80 | 15 | 2900 | 50 | 2.5 |
| 50-250(I)A | 23.4 | 70 | 11 | 2900 | 50 | 2.5 |
| 50-250(I)B | 21.6 | 60 | 11 | 2900 | 49 | 2.5 |
| 50-315(I) | 25 | 125 | 30 | 2900 | 40 | 2.5 |
| 50-315(I)A | 23.4 | 110 | 22 | 2900 | 40 | 2.5 |
| 50-315(I)B | 21.6 | 93 | 18.5 | 2900 | 39 | 2.5 |
| 65-100 | 25 | 12.5 | 1.5 | 2900 | 69 | 2.5 |
| 65-100A | 22.4 | 10 | 1.1 | 2900 | 67 | 2.5 |
| 65-125 | 25 | 20 | 3 | 2900 | 68 | 2.5 |
| 65-125A | 22.4 | 16 | 2.2 | 2900 | 66 | 2.5 |
| 65-160 | 25 | 32 | 4 | 2900 | 63 | 2.5 |
| 65-160A | 23.4 | 28 | 4 | 2900 | 62 | 2.5 |
| 65-160B | 21.6 | 24 | 3 | 2900 | 58 | 2.5 |
| 65-200 | 25 | 50 | 7.5 | 2900 | 58 | 2.5 |
| 65-200A | 23.4 | 44 | 7.5 | 2900 | 57 | 2.5 |
| 65-200B | 21.6 | 37 | 5.5 | 2900 | 55 | 2.5 |
| 65-250 | 25 | 80 | 15 | 2900 |
50 |
2.5 |
| 65-250A | 23.4 | 70 | 11 | 2900 | 50 | 2.5 |
| 65-250B | 21.6 | 60 | 11 | 2900 | 49 | 2.5 |
| 65-315 | 25 | 125 | 30 | 2900 | 40 | 2.5 |
| 65-315A | 23.4 | 110 | 22 | 2900 | 40 | 2.5 |
| 65-315B | 21.6 | 93 | 18.5 | 2900 | 39 | 2.5 |
| 65-100(I) | 50 | 12.5 | 3 | 2900 | 73 | 3.0 |
| 65-100(I)A | 44.8 | 10 | 2.2 | 2900 | 72 | 3.0 |
| 65-125(I) | 50 | 20 | 5.5 | 2900 | 72.5 | 3.0 |
| 65-125(I)A | 44.8 | 16 | 4 | 2900 | 71 | 3.0 |
| 65-160(I) | 50 | 32 | 7.5 | 2900 | 71 | 3.0 |
| 65-160(I)A | 46.8 | 28 | 7.5 | 2900 | 70 | 3.0 |
| 65-160(I)B | 43.2 | 24 | 5.5 | 2900 | 69 | 3.0 |
| 65-200(I) | 50 | 50 | 15 | 2900 | 67 | 3.0 |
| 65-200(I)A | 46.8 | 44 | 11 | 2900 | 66 | 3.0 |
| 65-200(I)B | 43 | 37 | 7.5 | 2900 | 65 | 3.0 |
| 65-250(I) | 50 | 80 | 22 | 2900 | 59 | 3.0 |
| 65-250(I)A | 46.8 | 70 | 18.5 | 2900 | 59 | 3.0 |
| 65-250(I)B | 43 | 60 | 15 | 2900 | 58 | 3.0 |
| 65-315(I) | 50 | 125 | 37 | 2900 | 54 | 3.0 |
| 65-315(I)A | 45.8 | 105 | 30 | 2900 | 54 | 3.0 |
| 65-315(I)B | 43 | 93 | 30 | 2900 | 53 | 3.0 |
| 80-100 | 50 | 12.5 | 3 | 2900 | 73 | 3.0 |
| 80-100A | 44.8 | 10 | 2.2 | 2900 | 72 | 3.0 |
| 80-125 | 50 | 20 | 5.5 | 2900 | 72.5 | 3.0 |
| 80-125A | 44.8 | 16 | 4 | 2900 | 71 | 3.0 |
| 80-160 | 50 | 32 | 7.5 | 2900 | 71 | 3.0 |
| 80-160A | 46.8 | 28 | 7.5 | 2900 | 70 | 3.0 |
| 80-160B | 43.2 | 24 | 5.5 | 2900 | 69 | 3.0 |
| 80-200 | 50 | 50 | 15 | 2900 | 67 | 3.0 |
| 80-200A | 46.8 | 44 | 11 | 2900 | 66 | 3.0 |
| 80-200B | 43 | 37 | 7.5 | 2900 | 65 | 3.0 |
| 80-250 | 50 | 80 | 22 | 2900 | 59 | 3.0 |
| 80-250A | 46.8 | 70 | 18.5 | 2900 | 59 | 3.0 |
| 80-250B | 43 | 60 | 15 | 2900 | 58 | 3.0 |
| 80-315 | 50 | 125 | 37 | 2900 | 54 | 3.0 |
| 80-315A | 45.8 | 105 | 30 | 2900 | 54 | 3.0 |
| 80-315B | 43 | 93 | 30 | 2900 | 53 | 3.0 |
| 80-315C | 41 | 85 | 22 | 2900 | 51 | 3.0 |
| 80-350 | 50 | 150 | 55 | 2900 | 66 | 3.0 |
| 80-350A | 44 | 142 | 45 | 2900 | 65 | 3.0 |
| 80-350B | 40 | 135 | 37 | 2900 | 63 | 3.0 |
| 80-100(I) | 100 | 12.5 | 5.5 | 2900 | 76 | 4.5 |
| 80-100(I)A | 89 | 10 | 4 | 2900 | 74 | 4.5 |
| 80-125(I) | 100 | 20 | 11 | 2900 | 76 | 4.5 |
| 80-125(I)A | 89 | 16 | 7.5 | 2900 | 74 | 4.5 |
| 80-160(I) | 100 | 32 | 15 | 2900 | 76 | 4.5 |
| 80-160(I)A | 93.5 | 28 | 11 | 2900 | 74 | 4.5 |
| 80-160(I)B | 86.4 | 24 | 11 | 2900 | 72 | 4.5 |
| 80-200(I) | 100 | 50 | 22 | 2900 | 74 | 4.0 |
| 80-200(I)A | 93.5 | 44 | 18.5 | 2900 | 73 | 4.0 |
| 80-200(I)B | 86.4 | 37 | 15 | 2900 | 71 | 4.0 |
| 80-250(I) | 100 | 80 | 37 | 2900 | 69 | 4.0 |
| 80-250(I)A | 93.5 | 70 | 30 | 2900 | 68 | 4.0 |
| 80-250(I)B | 86.4 | 60 | 30 | 2900 | 66 | 4.0 |
| 80-315(I) | 100 | 125 | 75 | 2900 | 66 | 4.0 |
| 80-315(I)A | 93.5 | 110 | 55 | 2900 | 66 | 4.0 |
| 80-315(I)B | 86.4 | 93 | 45 | 2900 | 65 | 4.0 |
| 80-315(I)C | 82 | 85 | 37 | 2900 | 63 | 4.0 |
| 100-100 | 100 | 12.5 | 5.5 | 2900 | 76 | 4.5 |
| 100-100A | 89 | 10 | 4 | 2900 | 74 | 4.5 |
| 100-125 | 100 | 20 | 11 | 2900 | 76 | 4.5 |
| 100-125A | 89 | 16 | 7.5 | 2900 | 74 | 4.5 |
| 100-160 | 100 | 32 | 15 | 2900 | 76 | 4.5 |
| 100-160A | 93.5 | 28 | 11 | 2900 | 74 | 4.5 |
| 100-160B | 86.4 | 24 | 11 | 2900 | 72 | 4.5 |
| 100-200 | 100 | 50 | 22 | 2900 | 74 | 4.0 |
| 100-200A | 93.5 | 44 | 18.5 | 2900 | 73 | 4.0 |
| 100-200B | 86.4 | 37 | 15 | 2900 | 71 | 4.0 |
| 100-250 | 100 | 80 | 37 | 2900 | 69 | 4.0 |
| 100-250A | 93.5 | 70 | 30 | 2900 | 68 | 4.0 |
| 100-250B | 86.4 | 60 | 30 | 2900 | 66 | 4.0 |
| 100-315 | 100 | 125 | 75 | 2900 | 66 | 4.0 |
| 100-315A | 93.5 | 110 | 55 | 2900 | 66 | 4.0 |
| 100-315B | 86.4 | 93 | 45 | 2900 | 65 | 4.0 |
| 100-100(I) | 160 | 12.5 | 11 | 2900 | 73 | 4.5 |
| 100-125(I) | 160 | 20 | 15 | 2900 | 74 | 4.5 |
| 100-125(I)A | 143 | 16 | 11 | 2900 | 72 | 4.5 |
| 100-160(I) | 160 | 32 | 22 | 2900 | 79 | 5.6 |
| 100-160(I)A | 150 | 28 | 18.5 | 2900 | 76 | 5.0 |
| 100-200(I) | 160 | 50 | 37 | 2900 | 79 | 5.2 |
| 100-200(I)A | 150 | 45 | 30 | 2900 | 74 | 4.5 |
| 100-200(I)B | 138 | 40 | 22 | 2900 | 72 | 4.5 |
| 100-250(I) | 160 | 80 | 55 | 2900 | 77 | 4.8 |
| 100-250(I)A | 140 | 70 | 45 | 2900 | 72 | 4.5 |
| 100-250(I)B | 100 | 65 | 37 | 2900 | 70 | 4.5 |
| 100-350 | 100 | 150 | 90 | 2900 | 57 | 4.0 |
| 100-350A | 87 | 142 | 75 | 2900 | 75 | 4.0 |
| 100-350B | 82 | 135 | 55 | 2900 | 75 | 4.0 |
| 125-100 | 160 | 12.5 | 11 | 2900 | 82 | 4.0 |
| 125-100A | 143 | 10 | 7.5 | 2900 | 77 | 4.0 |
| 125-125 | 160 | 20 | 15 | 2900 | 80 | 4.0 |
| 125-125A | 143 | 16 | 11 | 2900 | 77 | 4.0 |
| 125-160 | 200 | 32 | 30 | 2900 | 78 | 4.0 |
| 125-160A | 187 | 28 | 22 | 2900 | 76 | 4.0 |
| 125-160B | 180 | 24.5 | 18.5 | 2900 | 73 | 4.0 |
| 125-200 | 200 | 50 | 45 | 2900 | 77 | 5.5 |
| 125-200A | 187 | 44 | 37 | 2900 | 76 | 5.5 |
| 125-200B | 172 | 37 | 30 | 2900 | 75 | 5.5 |
| 125-250 | 200 | 80 | 75 | 2900 | 75 | 5.0 |
| 125-250A | 187 | 70 | 55 | 2900 | 74 | 5.5 |
| 125-250B | 172 | 60 | 45 | 2900 | 73 | 5.5 |
| 125-315 | 200 | 125 | 110 | 2900 | 70 | 5.0 |
| 125-315A | 187 | 110 | 90 | 2900 | 70 | 5.0 |
| 125-315B | 172 | 93 | 75 | 2900 | 69 | 5.0 |
| 125-315C | 160 | 78 | 55 | 2900 | 67 | 5.0 |
| 150-125 | 160 | 20 | 11 | 2900 | 76 | 4.0 |
| 150-125A | 150 | 16 | 7.5 | 2900 | 77 | 4.0 |
| 150-160 | 160 | 32 | 22 | 2900 | 75 | 4.0 |
| 150-160A | 150 | 28 | 18.5 | 2900 | 76 | 4.0 |
| 150-160B | 140 | 24 | 15 | 2900 | 73 | 4.0 |
| 150-200 | 160 | 50 | 37 | 2900 | 77 | 5.5 |
| 150-200A | 150 | 44 | 30 | 2900 | 76 | 5.5 |
| 150-200B | 140 | 38 | 22 | 2900 | 75 | 5.5 |
| 150-250 | 200 | 80 | 75 | 2900 | 75 | 5.0 |
| 150-250A | 187 | 70 | 55 | 2900 | 74 | 5.5 |
| 150-250B | 172 | 60 | 45 | 2900 | 73 | 5.5 |
| 150-315 | 200 | 125 | 110 | 2900 | 70 | 5.0 |
| 150-315A | 187 | 110 | 90 | 2900 | 70 | 5.0 |
| 150-315B | 172 | 93 | 75 | 2900 | 69 | 5.0 |
低轉速：
| 型號 |
流量 (m3/h) |
揚程 (m) |
電機功率 (kw) |
轉速 (r/min) |
| 40-125(I) | 6.3 | 5 | 0.55 | 1450 |
| 40-160(I) | 6.3 | 8 | 0.55 | 1450 |
| 40-160(I)A | 5.5 | 6 | 0.55 | 1450 |
| 40-200(I) | 6.3 | 12.5 | 0.75 | 1450 |
| 40-200(I)A | 5.8 | 11 | 0.55 | 1450 |
| 40-250(I) | 6.3 | 20 | 1.5 | 1450 |
| 40-250(I)A | 5.8 | 17 | 1.1 | 1450 |
| 50-125 | 6.3 | 5 | 0.55 | 1450 |
| 50-160 | 6.3 | 8 | 0.55 | 1450 |
| 50-160A | 5.5 | 6 | 0.55 | 1450 |
| 50-200 | 6.3 | 12.5 | 0.75 | 1450 |
| 50-200A | 5.8 | 11 | 0.55 | 1450 |
| 50-250 | 6.3 | 20 | 1.5 | 1450 |
| 50-250A | 5.8 | 17 | 1.1 | 1450 |
| 50-125(I) | 12.5 | 5 | 0.55 | 1450 |
| 50-160(I) | 12.5 | 8 | 0.75 | 1450 |
| 50-160(I)A | 11 | 6 | 0.55 | 1450 |
| 50-200(I) | 12.5 | 12.5 | 1.1 | 1450 |
| 50-200(I)A | 11.2 | 10 | 0.75 | 1450 |
| 50-250(I) | 12.5 | 20 | 2.2 | 1450 |
| 50-250(I)A | 11.7 | 17.5 | 1.5 | 1450 |
| 50-250(I)B | 10 | 13 | 1.1 | 1450 |
| 50-315(I) | 12.5 | 32 | 4 | 1450 |
| 50-315(I)A | 11.7 | 28 | 3 | 1450 |
| 50-315(I)B | 10 | 21 | 3 | 1450 |
| 65-125 | 12.5 | 5 | 0.55 | 1450 |
| 65-160 | 12.5 | 8 | 0.75 | 1450 |
| 65-160A | 11 | 6 | 0.55 | 1450 |
| 65-200 | 12.5 | 12.5 | 1.1 | 1450 |
| 65-200A | 11.2 | 10 | 0.75 | 1450 |
| 65-250 | 12.5 | 20 | 2.2 | 1450 |
| 65-250A | 11.7 | 17.5 | 1.5 | 1450 |
| 65-250B | 10 | 13 | 1.1 | 1450 |
| 65-315 | 12.5 | 32 | 4 | 1450 |
| 65-315A | 11.7 | 28 | 3 | 1450 |
| 65-315B | 10 | 21 | 3 | 1450 |
| 65-125(I) | 25 | 5 | 0.75 | 1450 |
| 65-160(I) | 25 | 8 | 1.5 | 1450 |
| 65-160(I)A | 22 | 6 | 1.1 | 1450 |
| 65-200(I) | 25 | 12.5 | 2.2 | 1450 |
| 65-200(I)A | 23.3 | 11 | 1.5 | 1450 |
| 65-250(I) | 25 | 20 | 3 | 1450 |
| 65-250(I)A | 22.2 | 15.8 | 2.2 | 1450 |
| 65-250(I)B | 20 | 12.8 | 1.54 | 1450 |
| 65-315(I) | 25 | 32 | 5.5 | 1450 |
| 65-315(I)A | 22.5 | 26 | 4 | 1450 |
| 65-315(I)B | 20 | 21 | 3 | 1450 |
| 80-125 | 25 | 5 | 0.75 | 1450 |
| 80-160 | 25 | 8 | 1.5 | 1450 |
| 80-160A | 22 | 6 | 1.1 | 1450 |
| 80-200 | 25 | 12.5 | 2.2 | 1450 |
| 80-200A | 23.3 | 11 | 1.5 | 1450 |
| 80-250 | 25 | 20 | 3 | 1450 |
| 80-250A | 22.2 | 15.8 | 2.2 | 1450 |
| 80-250B | 20 | 12.8 | 1.5 | 1450 |
| 80-315 | 25 | 32 | 5.5 | 1450 |
| 80-315A | 22.5 | 26 | 4 | 1450 |
| 80-315B | 20 | 21 | 3 | 1450 |
| 80-125(I) | 50 | 5 | 1.5 | 1450 |
| 80-160(I) | 50 | 8 | 2.2 | 1450 |
| 80-160(I)A | 44.7 | 6 | 1.5 | 1450 |
| 80-160(I)B | 43.2 | 5.8 | 1.5 | 1450 |
| 80-200(I) | 50 | 12.5 | 4 | 1450 |
| 80-200(I)A | 44.7 | 10 | 3 | 1450 |
| 80-250(I) | 50 | 20 | 5.5 | 1450 |
| 80-250(I)A | 46 | 17 | 4 | 1450 |
| 80-250(I)B | 40.5 | 13 | 3 | 1450 |
| 80-315(I) | 50 | 32 | 11 | 1450 |
| 80-315(I)A | 46 | 27.9 | 7.5 | 1450 |
| 80-315(I)B | 40.5 | 21 | 5.5 | 1450 |
| 100-125 | 50 | 5 | 1.5 | 1450 |
| 100-160 | 50 | 8 | 2.2 | 1450 |
| 100-160A | 46 | 6 | 1.5 | 1450 |
| 100-200 | 50 | 12.5 | 4 | 1450 |
| 100-200A | 44.7 | 10 | 3 | 1450 |
| 100-250 | 50 | 20 | 5.5 | 1450 |
| 100-250A | 46 | 17 | 4 | 1450 |
| 100-250B | 40.5 | 13 | 3 | 1450 |
| 100-315 | 50 | 32 | 11 | 1450 |
| 100-315A | 46 | 27.9 | 7.5 | 1450 |
| 100-315B | 40.5 | 21 | 5.5 | 1450 |
| 100-125(I) | 80 | 5 | 2.2 | 1450 |
| 100-160(I) | 80 | 8 | 3 | 1450 |
| 100-160(I)A | 72 | 6.5 | 2.2 | 1450 |
| 100-200(I) | 80 | 12.5 | 5.5 | 1450 |
| 100-200(I)A | 72 | 10 | 4 | 1450 |
| 100-250(I) | 80 | 20 | 11 | 1450 |
| 100-250(I)A | 75 | 17.5 | 7.5 | 1450 |
| 100-250(I)B | 69 | 15 | 5.5 | 1450 |
| 100-315(I) | 80 | 32 | 15 | 1450 |
| 100-315(I)A | 75 | 27.5 | 11 | 1450 |
| 100-315(I)B | 70 | 24 | 11 | 1450 |
| 100-400(I) | 80 | 50 | 22 | 1450 |
| 100-400(I)A | 75 | 44 | 18.5 | 1450 |
| 100-400(I)B | 70 | 38 | 15 | 1450 |
| 125-125 | 100 | 5 | 2.2 | 1450 |
| 125-160 | 100 | 8 | 4 | 1450 |
| 125-160A | 87 | 6 | 4 | 1450 |
| 125-200 | 100 | 12.5 | 7.5 | 1450 |
| 125-200A | 89 | 10 | 5.5 | 1450 |
| 125-250 | 100 | 220 | 11 | 1450 |
| 125-250A | 93.5 | 17.5 | 7.5 | 1450 |
| 125-250B | 87 | 15 | 7.5 | 1450 |
| 125-315 | 100 | 32 | 15 | 1450 |
| 125-315A | 91 | 27 | 11 | 1450 |
| 125-315B | 87 | 24 | 11 | 1450 |
| 125-400 | 100 | 50 | 30 | 1450 |
| 125-400A | 94 | 44 | 22 | 1450 |
| 125-400B | 87 | 37.5 | 18.5 | 1450 |
| 125-200(I) | 160 | 12.5 | 11 | 1450 |
| 125-200(I)A | 143 | 10 | 7.5 | 1450 |
| 125-250(I) | 160 | 20 | 15 | 1450 |
| 125-250(I)A | 147 | 17 | 11 | 1450 |
| 125-250(I)B | 134 | 14 | 7.5 | 1450 |
| 125-315(I) | 160 | 32 | 22 | 1450 |
| 125-315(I)A | 150 | 28 | 18.5 | 1450 |
| 125-315(I)B | 138 | 24 | 15 | 1450 |
| 125-400(I) | 160 | 50 | 37 | 1450 |
| 125-400(I)A | 150 | 44 | 30 | 1450 |
| 125-400(I)B | 138 | 38 | 30 | 1450 |
| 150-200 | 160 | 12.5 | 11 | 1450 |
| 150-200A | 143 | 10 | 7.5 | 1450 |
| 150-250 | 160 | 20 | 15 | 1450 |
| 150-250A | 147 | 17 | 11 | 1450 |
| 150-250B | 134 | 14 | 7.5 | 1450 |
| 150-315 | 160 | 32 | 22 | 1450 |
| 150-315A | 150 | 28 | 18.5 | 1450 |
| 150-315B | 138 | 24 | 15 | 1450 |
| 150-400 | 160 | 50 | 37 | 1450 |
| 150-400A | 150 | 44 | 30 | 1450 |
| 150-400B | 138 | 38 | 30 | 1450 |
| 150-200(I) | 200 | 12.5 | 15 | 1450 |
| 150-200(I)A | 179 | 10 | 11 | 1450 |
| 150-250(I) | 200 | 20 | 18.5 | 1450 |
| 150-250(I)A | 187 | 17.5 | 15 | 1450 |
| 150-250(I)B | 173 | 14 | 11 | 1450 |
| 150-315(I) | 200 | 32 | 30 | 1450 |
| 150-315(I)A | 187 | 28 | 22 | 1450 |
| 150-315(I)B | 173 | 24 | 18.5 | 1450 |
| 150-400(I) | 200 | 50 | 45 | 1450 |
| 150-400(I)A | 187 | 44 | 37 | 1450 |
| 150-400(I)B | 173 | 37.5 | 30 | 1450 |
| 200-200 | 200 | 12.5 | 15 | 1450 |
| 200-200A | 179 | 10 | 11 | 1450 |
| 200-250 | 200 | 20 | 18.5 | 1450 |
| 200-250A | 187 | 17.5 | 15 | 1450 |
| 200-250B | 173 | 14 | 11 | 1450 |
| 200-315 | 200 | 32 | 30 | 1450 |
| 200-315A | 187 | 28 | 22 | 1450 |
| 200-315B | 173 | 24 | 18.5 | 1450 |
| 200-400 | 200 | 50 | 45 | 1450 |
| 200-400A | 187 | 44 | 37 | 1450 |
| 200-400B | 173 | 37.5 | 30 | 1450 |
| 200-200(I) | 400 | 12.5 | 22 | 1450 |
| 200-200(I)A | 358 | 10 | 18.5 | 1450 |
| 200-250(I) | 400 | 20 | 30 | 1450 |
| 200-250(I)A | 358 | 16 | 22 | 1450 |
| 200-250(I)B | 322 | 13 | 18.5 | 1450 |
| 200-315(I) | 400 | 32 | 55 | 1450 |
| 200-315(I)A | 374 | 28 | 45 | 1450 |
| 200-315(I)B | 346 | 24 | 37 | 1450 |
| 200-400(I) | 400 | 50 | 90 | 1450 |
| 200-400(I)A | 374 | 44 | 75 | 1450 |
| 200-400(I)B | 347 | 38 | 55 | 1450 |
| 200-400(I)C | 320 | 32 | 45 | 1450 |
| 250-250 | 550 | 20 | 45 | 1450 |
| 250-250A | 490 | 16 | 37 | 1450 |
| 250-315 | 550 | 32 | 75 | 1450 |
| 250-315A | 515 | 28 | 55 | 1450 |
| 250-315B | 476 | 24 | 45 | 1450 |
| 250-400 | 550 | 50 | 110 | 1450 |
| 250-400A | 515 | 44 | 90 | 1450 |
| 250-400B | 476 | 37.5 | 75 | 1450 |
| 300-400 | 720 | 50 | 132 | 1450 |
| 300-400A | 662 | 44 | 110 | 1450 |
| 300-400B | 609 | 38 | 90 | 1450 |
| 300-400C | 561 | 33 | 75 | 1450 |
| 300-460 | 720 | 65 | 200 | 1450 |
| 300-460A | 662 | 55 | 160 | 1450 |
| 300-460B | 609 | 45 | 110 | 1450 |
| 300-460C | 561 | 38 | 90 | 1450 |
| 300-510 | 720 | 80 | 250 | 1450 |
| 300-510A | 662 | 70.5 | 200 | 1450 |
| 300-510B | 609 | 62 | 160 | 1450 |
| 300-510C | 561 | 54.5 | 132 | 1450 |
| 300-235 | 720 | 18 | 55 | 970 |
| 300-235A | 657 | 15 | 45 | 970 |
| 300-300 | 720 | 28 | 75 | 970 |
| 300-300A | 666 | 24 | 75 | 970 |
| 300-300B | 623 | 21 | 55 | 970 |
| 300-380 | 720 | 44 | 132 | 970 |
| 300-380A | 666 | 38 | 110 | 970 |
| 300-380B | 623 | 33 | 90 | 970 |
| 350-250 | 800 | 20 | 75 | 970 |
| 350-250A | 715 | 16 | 55 | 970 |
| 350-315 | 800 | 32 | 90 | 970 |
| 350-315A | 748 | 28 | 75 | 970 |
| 350-315B | 692 | 24 | 75 | 970 |
| 350-400 | 800 | 50 | 160 | 970 |
| 350-400A | 750 | 44 | 132 | 970 |
| 350-400B | 697 | 38 | 110 | 970 |
| 400-400 | 1080 | 12.5 | 55 | 970 |
| 400-400A | 966 | 10 | 45 | 970 |
| 400-500 | 1080 | 20 | 90 | 970 |
| 400-500A | 966 | 17 | 75 | 970 |
| 400-500B | 935 | 15 | 55 | 970 |
| 400-625 | 1080 | 32 | 132 | 970 |
| 400-625A | 996 | 27 | 110 | 970 |
| 400-625B | 935 | 24 | 90 | 970 |
| 500-400 | 1200 | 12.5 | 75 | 970 |
| 500-400A | 1073 | 10 | 55 | 970 |
| 500-500 | 1200 | 20 | 110 | 970 |
| 500-500A | 1106 | 17 | 90 | 970 |
| 500-500B | 1040 | 15 | 75 | 970 |
| 500-625 | 1200 | 32 | 160 | 970 |
| 500-625A | 1106 | 27 | 132 | 970 |
| 500-625B | 1040 | 24 | 110 | 970 |
相關產品
相關文章
