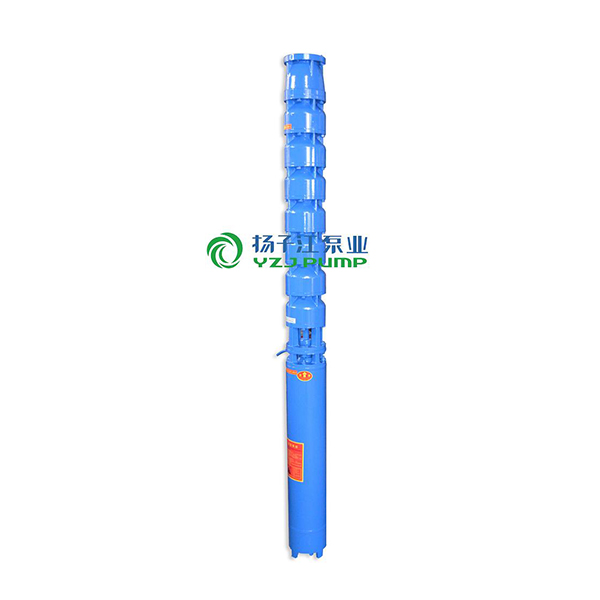

QJ型井用潛水泵
QJ型井用潛水泵是電機與水泵直聯潛入水中工作的提水機具,它適用于從深井提取地下水,也可用于河流、水庫、水渠等提水工程:主要用于農田灌溉及高原山區的人畜用水,亦可供城市、工廠、鐵路、礦山、工地供排水使用。
目錄
QJ型井用潛水泵概述
QJ型井用潛水泵是電機與水泵直聯潛入水中工作的提水機具,它適用于從深井提取地下水,也可用于河流、水庫、水渠等提水工程:主要用于農田灌溉及高原山區的人畜用水,亦可供城市、工廠、鐵路、礦山、工地供排水使用。
QJ型井用潛水泵主要特點
1.電機、水泵體,潛入水中運行,安全可靠.
2.對井管、揚水管無特殊要求(即:鋼管井、灰管井、土井等均可使用;在壓力許可下,鋼管、膠管、塑料管等均可作揚水管使用)。
3.安裝、使用、維護方便簡單,占地面積小、不需建造泵房。
4.結構簡單,節省原材料。 潛水電泵使用的條件是否合適,管理得當與使用壽命有直接的關系。
QJ型井用潛水泵結構說明
1.QJ型潛水電泵機組由：水泵、潛水電機（包括電纜）、輸水管和控制開關四大部分組成。潛水泵為單吸多級立式離心泵：潛水電機為密閉充水濕式、立式三相鼠籠異歩電動機，電機與水泵通過爪式或中.鍵筒式聯軸器直接；配備有不同規格的三芯電纜：起動設備為不同容量等級的空氣開關和自耦減壓起動器、輸水管為不同直徑的鋼管制成，采用法蘭聯接，高揚程電泵釆用閘閥控制。
2.潛水泵每級導流殼中裝有一個橡膠軸承；葉輪用錐形套固定在泵軸上：導流殼采用嫘紋或螺栓聯成一體。
3.高揚程潛水泵上部裝有止回閥，避免停機水錘造成機組破壞。
4.潛水電機軸上部裝有迷宮式防砂器和兩個反向裝配的骨架油封，防止流砂進入電機。
5.潛水電機采用水潤滑軸承，下部裝有橡膠調壓膜、調壓彈簧，組成調壓室，調節由于溫度引起的壓力變化；電機繞組采用聚乙烯絕緣，尼龍護套耐水電磁線，電纜聯接方式按QJ型電纜接頭工藝， 把接頭絕緣脫去刮凈漆層，分別接好，焊接牢固，用生橡膠繞-層。再用防水粘膠帶纏2~3層，外面包上2～3層防水膠布或用水膠粘結包一層橡膠帶（自行車?yán)锾ァ狄苑罎B水。
6.電機密閉，采用精密止口螺牷，電纜出口加膠塾進行密封。
7.電機上端有一個注水孔，有一個放氣孔，卜部打個放水孔。
8.電機下部裝有上卜—止推軸承，止推軸承上有溝槽用干冷卻，和它對磨的是不銹鋼推力盤，承愛水泵的上廠軸向力。

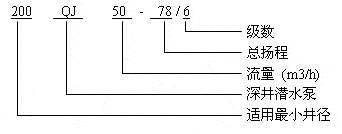

QJ型井用潛水泵型號意義
技術選型參數表
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流A | 出水管直徑 | 配套電纜規格 |
| 1 | 1OOQJ2-50/10 | 2 | 40 | 0.75 | 2.0 | 40 | 3×1.5+1×1 |
| 2 | 100QJ2-70/14 | 70 | 1.1 | 3.1 | 3×1.5+1×1 | ||
| 3 | 100QJ2-80/16 | 80 | 1.1 | 3.1 | 3×1.5+1×1 | ||
| 4 | 100QJ2-100/20 | 100 | 1.5 | 3.8 | 3×1.5+1×1 | ||
| 5 | 100QJ2-110/22 | 110 | 1.5 | 3.8 | 3×1.5+1×1 | ||
| 6 | 100QJ2-140/28 | 140 | 1.5 | 3.8 | 3×1.5+1×1 | ||
| 7 | 100QJ2-150/30 | 150 | 2.2 | 5.6 | 3×1.5+1×1 | ||
| 8 | 1OOOJ2-160/32 | 160 | 2.2 | 5.6 | 3×2.5+1×1.5 | ||
| 9 | 100QJ2-190/38 | 190 | 2.2 | 5.6 | 3×2.5+1×1.5 | ||
| 10 | 1OOOJ2-200/40 | 200 | 3.0 | 7.3 | 3×4+1×2.5 | ||
| 11 | 100QJ3.2-40/6 | 3.2 | 40 | 0.75 | 2.0 | 40 | 3×1.5+1×1 |
| 12 | 1OOOJ3.2-54/8 | 54 | 0.75 | 2.0 | 3×1.5+1×1 | ||
| 13 | 100QJ3.2.68/10 | 68 | 1.1 | 3.1 | 3×1.5+1×1 | ||
| 14 | 100QJ3.2-72/11 | 72 | 1.1 | 3.1 | 3×1.5+1×1 | ||
| 15 | 1OOQJ3.2-99/15 | 99 | 1.5 | 3.8 | 3×1.5+1×1 | ||
| 16 | 1OOQJ3.2-108/16 | 108 | 2.2 | 5.6 | 3×1.5+1×1 | ||
| 17 | 100QJ3.2-135/20 | 135 | 2.2 | 5.6 | 3×2.5+1×1.5 | ||
| 18 | 1OOQJ3.2-144/21 | 144 | 3．O | 7.3 | 3×4+1×2.5 | ||
| 19 | 100QJ3.2-170/25 | 170 | 3.0 | 7.3 | 3×4+1×2.5 | ||
| 20 | 100QJ3.2-230/34 | 230 | 4.0 | 10.26 | 3×4+1×2.5 | ||
| 21 | 100QJ5-24/6 | 5 | 24 | 0.75 | 2.0 | 40 | 3×1.5+1×1 |
| 22 | 100QJ5-36/9 | 36 | 1.1 | 3.1 | 3×1.5+1×1 | ||
| 23 | 100QJ5-48/12 | 48 | 1.5 | 3.8 | 3×1.5+1×1 | ||
| 24 | 100QJ5-64/16 | 64 | 2.2 | 5.6 | 3×1.5+1×1 | ||
| 25 | 100QJ5-72/18 | 72 | 2.2 | 5.6 | 3×1.5+1×1 | ||
| 26 | 100QJ5-88/22 | 88 | 3.0 | 7.3 | 3×2.5+1×1.5 | ||
| 27 | 100QJ5-96/24 | 96 | 3.0 | 7.3 | 3×2.5+1×1.5 | ||
| 28 | 1OOQJ5-108/27 | 108 | 3.0 | 7.3 | 3×4+1×2.5 | ||
| 29 | 100QJ5-128/32 | 128 | 4.0 | 10.26 | 3×4+1×2.5 | ||
| 30 | 100QJ5-164/41 | 164 | 5.5 | 13.74 | 3×4+1×2.5 | ||
| 31 | 100QJ5-220/55 | 220 | 7.5 | 18.5 | 3×6+1×4 |
| 序號 | 型號 | 流量(m3/h) |
揚程 (m) |
電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 32 | 1OOQJ8-15/3 | 8 | 15 | 0.75 | 2.0 | 50 | 3×1.5+1×1 |
| 33 | 1OOQJ8-20/4 | 20 | 1.1 | 3.1 | 3×1.5+1×1 | ||
| 34 | 1OOQJ8-30/6 | 30 | 1.5 | 3.8 | 3×1.5+1×1 | ||
| 35 | 1OOQJ8-40/8 | 40 | 99 | 5.6 | 3×1.5+1×1 | ||
| 36 | 1OOQJ8-50/10 | 50 | 3.0 | 7.3 | 3×2.5+1×1.5 | ||
| 37 | 1OOOJ8-60/12 | 60 | 3．O | 7.3 | 3×2.5+1×1.5 | ||
| 38 | 1OOQJ8-70/14 | 70 | 3.0 | 7.3 | 3×2.5+1×1.5 | ||
| 39 | 1OOQJ8-85/17 | 85 | 4.0 | 10.26 | 3×2.5+1×1.5 | ||
| 40 | 1OOQJ8-95/19 | 95 | 5.5 | 13.74 | 3×4+1×2.5 | ||
| 41 | 1OOQJ8-100/20 | 100 | 5.5 | 13.74 | 3×4+1×2.5 | ||
| 42 | 1OOQJ8-110/22 | 110 | 5.5 | 13.74 | 3×4+1×2.5 | ||
| 43 | 1OOOJ8-135/27 | 135 | 7.5 | 18.5 | 3×4+1×2.5 | ||
| 44 | 1OOQJ8-150/30 | 150 | 7.5 | 18.5 | 3×4+1×2.5 | ||
| 45 | 1OOQJ10-48/1o | 10 | 48 | 2.2 | 5.6 | 50 | 3×1.5+1×1 |
| 46 | 1OOQJ10-60/13 | 60 | 3.0 | 7.3 | 3×2.5+1×1.5 | ||
| 47 | 1OOQJ10-80/17 | 80 | 4.0 | 10.26 | 3×2.5+1×1.5 | ||
| 48 | 1OOQJ10-108/22 | 108 | 5.5 | 13.74 | 3×4+1×2.5 | ||
| 49 | 1OOQJ10-130/27 | 130 | 7.5 | 18.5 | 3×4+1×2.5 | ||
| 50 | 1OOQJ15-34/10 | 15 | 34 | 3．O | 7.3 | 50 | 3×2.5+1×1.5 |
| 51 | 100QJ15-52/14 | 52 | 4.0 | 10.26 | 3×2.5+1×1.5 | ||
| 52 | 1OOQJ15-58/18 | 58 | 5.5 | 13.74 | 3×4+1×2.5 | ||
| 53 | 1OOQJ15-82/24 | 82 | 7.5 | 18.5 | 3×4+1×2.5 | ||
| 55 | 150QJ5-85/12 | 5 | 85 | 3 | 7.9 | 50 | 3×4 |
| 56 | 150QJ5-100/14 | 100 | 3 | 7.9 | 3×4 | ||
| 57 | 150QJ5-150/21 | 150 | 4 | 10.26 | 3×4 | ||
| 58 | 150QJ5-200/28 | 200 | 5.5 | 13.74 | 3×6 | ||
| 59 | 150QJ5-250/35 | 250 | 7.5 | 18.5 | 3×6 | ||
| 60 | 150QJ5-300/42 | 300 | 9.2 | 22.12 | 3×10 | ||
| 61 | 150QJ10-50/7 | 10 | 50 | 3 | 7.9 | 3×4 | |
| 62 | 150QJ10-78/11 | 78 | 4 | 10.26 | 3×4 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 63 | 150QJ10-100/14 | 10 | 100 | 5.5 | 13.74 | 50 | 3×4 |
| 64 | 150QJ10-128/18 | 128 | 7.5 | 18.5 | 3×6 | ||
| 65 | 150QJ10-150/21 | 150 | 7.5 | 18.5 | 3×6 | ||
| 66 | 150QJ10-178/25 | 178 | 9.2 | 22.12 | 3×6 | ||
| 67 | 150QJ10-200/28 | 200 | 11 | 26.28 | 3×10 | ||
| 68 | 150QJ10-250/35 | 250 | 13 | 30.87 | 3×10 | ||
| 69 | 150QJ10-300/42 | 300 | 15 | 35.62 | 3×16 | ||
| 70 | 150QJ20-26/4 | 20 | 26 | 3 | 7.9 | 3×4 | |
| 71 | 150QJ20-33/5 | 33 | 3 | 7.9 | 3×4 | ||
| 72 | 150QJ20-39/6 | 39 | 4 | 10.26 | 3×4 | ||
| 73 | 150QJ20-46/7 | 46 | 5.5 | 13.74 | 3×4 | ||
| 74 | 150QJ20-52/8 | 52 | 5.5 | 13.74 | 3×4 | ||
| 75 | 150QJ20-59/9 | 59 | 5.5 | 13.74 | 3×4 | ||
| 76 | 150Q220-65/10 | 65 | 7.5 | 18.5 | 3×4 | ||
| 77 | 150QJ20-72/11 | 72 | 7.5 | 18.5 | 3×4 | ||
| 78 | 150QJ20-78/12 | 78 | 7.5 | 18.5 | 3×6 | ||
| 79 | 150QJ201-85/13 | 85 | 9.2 | 22.12 | 3×6 | ||
| 80 | 150QJ20-91/14 | 91 | 9.2 | 22.12 | 3×6 | ||
| 81 | 150QJ20-98/15 | 98 | 9.2 | 22.12 | 3×6 | ||
| 82 | 150QJ20-104/16 | 104 | 11 | 26.28 | 3×6 | ||
| 83 | 150QJ20-111/17 | 111 | 11 | 26.28 | 3×6 | ||
| 84 | 150QJ20-117/17 | 117 | 13 | 30.87 | 3×6 | ||
| 85 | 150QJ20-124/19 | 124 | 13 | 30.87 | 3×6 | ||
| 86 | 150QJ20-130/20 | 130 | 13 | 30.87 | 3×6 | ||
| 87 | 150QJ20-137/21 | 137 | 15 | 35.62 | 3×6 | ||
| 88 | 150QJ20-143/22 | 143 | 15 | 35.62 | 3×6 | ||
| 89 | 150QJ20-150/23 | 150 | 15 | 35.62 | 3×6 | ||
| 90 | 150QJ20-156/24 | 156 | 15 | 35.62 | 3×10 | ||
| 91 | 150QJ20-163/25 | 163 | 15 | 35.62 | 3×10 | ||
| 92 | 150QJ25-24/3 | 25 | 24 | 3 | 7.9 | 65 | 3×4 |
| 93 | 150QJ25-32/4 | 32 | 4 | 10.3 | 3×4 |
| 序號 | 型號 | 流量(m3/h) |
揚程 (m) |
電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 94 | 150QJ25-40/5 | 25 | 40 | 5.5 | 13.7 | 65 | 3×4 |
| 95 | 150QJ25-48/6 | 48 | 5.5 | 13.7 | 3×4 | ||
| 96 | 150QJ25-56/7 | 56 | 7.5 | 18.5 | 3×4 | ||
| 97 | 150QJ25--64/8 | 64 | 7.5 | 18.5 | 3×4 | ||
| 98 | 150QJ25-72/9 | 72 | 9.2 | 18.5 | 3×6 | ||
| 99 | 150QJ25-80/10 | 80 | 9.2 | 22.1 | 3×6 | ||
| 100 | 150QJ25-88/11 | 88 | 11 | 26.3 | 3×6 | ||
| 101 | 150QJ25-96/12 | 96 | 11 | 26.3 | 3×6 | ||
| 102 | 150QJ25-104/13 | 104 | 13 | 30.9 | 3×6 | ||
| 103 | 150QJ25-112/14 | 112 | 13 | 30.9 | 3×6 | ||
| 104 | 150QJ25-120/15 | 120 | 15 | 35.6 | 3×6 | ||
| 105 | 150QJ25-128/16 | 128 | 15 | 35.6 | 3×6 | ||
| 106 | 150QJ25-136/17 | 136 | 18.5 | 44.0 | 3×10 | ||
| 107 | 150QJ25-144/18 | 144 | 18.5 | 44.0 | 3×10 | ||
| 108 | 150QJ25-152/19 | 152 | 18.5 | 44.0 | 3×10 | ||
| 109 | 150QJ32-18/3 | 32 | 18 | 3 | 7.9 | 65 | 3×4 |
| 110 | 150QJ32-24/4 | 24 | 4 | 10.26 | 3×4 | ||
| 111 | 150QJ32-30/5 | 30 | 5.5 | 13.74 | 3×4 | ||
| 112 | 150QJ32-36/6 | 36 | 5.5 | 13.74 | 3×4 | ||
| 113 | 150QJ32-42/7 | 42 | 7.5 | 18.5 | 3×6 | ||
| 114 | 150QJ32-54/9 | 54 | 9.2 | 22.12 | 3×6 | ||
| 115 | 150QJ32-66/11 | 66 | 11 | 26.28 | 3×6 | ||
| 116 | 150QJ32-72/12 | 72 | 13 | 30.87 | 3×6 | ||
| 117 | 150QJ32-84/14 | 84 | 13 | 30.87 | 3×6 | ||
| 118 | 150QJ32-90/15 | 90 | 15 | 35.62 | 3×6 | ||
| 119 | 150QJ32-96/16 | 96 | 15 | 35.62 | 3×6 | ||
| 120 | 150QJ32-108/18 | 108 | 18.5 | 44.0 | 3×10 | ||
| 121 | 150QJ50-6/1 | 50 | 6 | 3 | 7.9 | 80 | 3×4 |
| 122 | 150QJ50-12/2 | 12 | 4 | 10.26 | 3×4 | ||
| 123 | 150QJ50-18/3 | 18 | 5.5 | 13.74 | 3×4 | ||
| 124 | 150QJ50-24/4 | 24 | 7.5 | 18.5 | 3×6 | ||
| 125 | 150Qj50-30/5 | 30 | 9.2 | 22.12 | 3×6 |
| 序號 | 型號 | 流量(m3/h) |
揚程 (m) |
電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 126 | 150QJ50-36/6 | 50 | 36 | 9.2 | 22.12 | 80 | 3×6 |
| 127 | 150QJ50-42/7 | 42 | 11 | 26.28 | 3×6 | ||
| 128 | 150QJ50-48/8 | 48 | 13 | 30.87 | 3×6 | ||
| 129 | 150QJ50-54/9 | 54 | 15 | 35.62 | 3×6 | ||
| 130 | 150QJ50-60/10 | 60 | 18.5 | 44.0 | 3×6 | ||
| 131 | 150QJ50-66/11 | 66 | 18.5 | 44.0 | 3×6 | ||
| 132 | 150QJ50-72/12 | 72 | 18.5 | 44.0 | 3×10 |
| 133 | 200QJ20-40/3 | 20 | 40 | 4 | 10.1 | 50 | 3×4 |
| 134 | 200QJ20-54/4 | 54 | 5.5 | 13.6 | 3×4 | ||
| 135 | 200QJ20-67/5 | 67 | 7.5 | 18 | 3×4 | ||
| 136 | 200QJ20-81/6 | 81 | 7.5 | 18 | 3×4 | ||
| 137 | 200QJ20-93/7 | 93 | Q9 | 21.7 | 3×6 | ||
| 138 | 200QJ20-108/8 | 108 | 11 | 25.8 | 3×6 | ||
| 139 | 200QJ20-121/9 | 121 | 13 | 29.8 | 3×6 |
| 序號 | 型號 | 流量(m3/h) |
揚程 (m) |
電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 140 | 200QJ20-133/10 | 20 | 133 | 15 | 33.9 | 50 | 3×6 |
| 141 | 200QJ20-148/11 | 148 | 15 | 33.9 | 3×6 | ||
| 142 | 200QJ20-175/13 | 175 | 18.5 | 41.6 | 3×10 | ||
| 143 | 200QJ20-202/15 | 202 | 22 | 48.2 | 3×16 | ||
| 144 | 200QJ20-243/18 | 243 | 25 | 54.5 | 65 | 3×16 | |
| 145 | 200QJ201-270/20 | 270 | 30 | 65.4 | 3×25 | ||
| 146 | 200QJ20-297/22 | 297 | 30 | 65.4 | 3×25 | ||
| 147 | 200QJ20-338/25 | 338 | 37 | 79.7 | 3×25 | ||
| 148 | 200QJ20-350/26 | 350 | 37 | 79.7 | 3×35 | ||
| 149 | 200QJ20-363/27 | 363 | 37 | 79.7 | 3×35 | ||
| 150 | 200QJ20-400/30 | 400 | 45 | 96.9 | 3×50 | ||
| 151 | 200QJ20-450/34 | 450 | 45 | 96.9 | 3×50 | ||
| 152 | 200QJ32-26/2 | 32 | 26 | 4 | 10.1 | 65 | 3×4 |
| 153 | 200QJ32-39/3 | 39 | 5.5 | 13.6 | 3×4 | ||
| 154 | 200QJ32-52/4 | 52 | 7.5 | 18 | 3×4 | ||
| 155 | 200QJ32-65/5 | 65 | 11 | 25.8 | 3×6 | ||
| 156 | 200QJ32-78/6 | 78 | 11 | 25.8 | 3×6 | ||
| 157 | 200QJ32-91/7 | 91 | 13 | 29.8 | 3×6 | ||
| 158 | 200QJ32-104/8 | 104 | 15 | 33.9 | 3×6 | ||
| 159 | 200QJ32-130/10 | 130 | 18.5 | 41.6 | 3×10 | ||
| 160 | 200QJ32-156/12 | 156 | 25 | 54.5 | 3×16 | ||
| 161 | 200QJ32-195/15 | 195 | 30 | 65.4 | 3×16 | ||
| 162 | 200QJ32-234/18 | 234 | 37 | 79.7 | 3×25 | ||
| 163 | 200QJ32-247/19 | 247 | 37 | 79.7 | 3×25 | ||
| 164 | 200QJ32-260/20 | 260 | 45 | 96.9 | 3×25 | ||
| 165 | 200QJ32-286/22 | 286 | 45G | 96.9 | 3×35 | ||
| 167 | 200QJ40-26/2 | 40 | 26 | 5.5 | 13.6 | 3×4 | |
| 168 | 200QJ40-39/3 | 39 | 7.5 | 18 | 3×4 | ||
| 169 | 200QJ40-52/4 | 52 | q9 | 21.7 | 3×6 | ||
| 170 | 200QJ40-65/5 | 65 | 11 | 25.8 | 3×6 | ||
| 171 | 200QJ40-78/6 | 78 | 15 | 33.9 | 3×6 | ||
| 172 | 200QJ40-104/8 | 104 | 18.5 | 41.6 | 3×10 | ||
| 173 | 200QJ40-117/9 | 117 | 22 | 48.2 | 3×10 | ||
| 174 | 200QJ40-143/11 | 143 | 25 | 54.5 | 3×10 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 175 | 200QJ40-169/13 | 40 | 169 | 30 | 65.4 | 65 | 3×16 |
| 176 | 200QJ40-182/14 | 182 | 37 | 79.7 | 3×16 | ||
| 177 | 200QJ40-208/16 | 208 | 37G | 79.7 | 3×25 | ||
| 178 | 200QJ40-234/18 | 234 | 45G | 96.9 | 3×25 | ||
| 179 | 200QJ40-247/19 | 247 | 45G | 96.9 | 3×35 | ||
| 180 | 200QJ50-13/1 | 50 | 13 | 4 | 10.1 | 80 | 3×4 |
| 181 | 200QJ50-26/2 | 26 | 5.5 | 13.6 | 3×4 | ||
| 182 | 200QJ50-39/3 | 39 | 9.2 | 21.7 | 3×4 | ||
| 183 | 200QJ50-52/4 | 52 | 11 | 25.8 | 3×6 | ||
| 184 | 200QJ50-65/5 | 65 | 15 | 33.9 | 3×6 | ||
| 185 | 200QJS0-78/6 | 78 | 18.5 | 41.6 | 3×6 | ||
| 186 | 200QJ50-91/7 | 91 | 22 | 48.2 | 3×10 | ||
| 187 | 200QJ50-104/8 | 104 | 25 | 54.5 | 3×10 | ||
| 188 | 200QJ50-117/9 | 117 | 30 | 65.4 | 3×10 | ||
| 189 | 200QJ50-130/1O | 130 | 30 | 65.4 | 3×16 | ||
| 190 | 200QJ50-156/12 | 156 | 37 | 79.7 | 3×16 | ||
| 191 | 200QJ50-182/14 | 182 | 45G | 96.9 | 3×25 | ||
| 192 | 200QJ50-195/15 | 195 | 45G | 96.9 | 3×25 | ||
| 193 | 200QJ63-12/1 | 63 | 12 | 4 | 10.1 | 80 | 3×4 |
| 194 | 200QJ63-24/2 | 24 | 7.5 | 18 | 3×4 | ||
| 195 | 200QJ63-36/3 | 36 | 11 | 25.8 | 3×6 | ||
| 196 | 200QJ63-48/4 | 48 | 15 | 33.9 | 3×6 | ||
| 197 | 200QJ63-60/5 | 60 | 18.5 | 41.6 | 3×10 | ||
| 198 | 200QJ63-72/6 | 72 | 99 | 48.2 | 3×10 | ||
| 199 | 200QJ63-84/7 | 84 | 9氏 | 54.5 | 3×10 | ||
| 200 | 200QJ63-96/8 | 96 | 30 | 65.4 | 3×16 | ||
| 201 | 200QJ63-108/9 | 108 | 30 | 65.4 | 3×16 | ||
| 202 | 200QJ63-120/10 | 120 | 37 | 79.7 | 3×25 | ||
| 203 | 200QJ63-144/12 | 144 | 45 | 96.9 | 3×25 | ||
| 204 | 200QJ80-11/1 | 80 | 11 | 4 | 10.1 | 100 | 3×4 |
| 205 | 200QJ80-22/1 | 22- | 7.5 | 18 | 3×4 | ||
| 206 | 200QJS0-33/3 | 33 | 11 | 25.8 | 3×6 | ||
| 207 | 200QJ80-44/4 | 44 | 15 | 33.9 | 3×6 | ||
| 208 | 200QJ80-55/5 | 55 | 18.5 | 41.6 | 3×10 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 209 | 200QJ80-66/6 | 80 | 66 | 22 | 48.2 | 100 | 3×10 |
| 210 | 200QJ801-77/7 | 77 | 30 | 65.4 | 3×16 | ||
| 211 | 200QJ80-88/8 | 88 | 37 | 79.7 | 3×16 | ||
| 212 | 2000J80-99/9 | 99 | 37 | 79.7 | 3×16 | ||
| 213 | 200QJ80-121/11 | 121 | 45 | 96.9 | 3×25 | ||
| 214 | 250QJ32-138/6 | 32 | 138 | 22 | 47.9 | 65 | 3×10 |
| 215 | 250QJ32-161/7 | 161 | 25 | 53.8 | 3×16 | ||
| 216 | 250QJ32-184/8 | 184 | 30 | 64.2 | 3×16 | ||
| 217 | 250QJ32-207/9 | 207 | 37 | 77.8 | 3×16 | ||
| 218 | 250QJ32-230/10 | 230 | 37 | 77.8 | 3×25 | ||
| 219 | 250QJ32-253/11 | 253 | 45 | 94.1 | 3×25 | ||
| 220 | 250QJ32-276/12 | 276 | 45 | 94.1 | 3×25 | ||
| 231 | 250QJ32-300/13 | 300 | 55G | 114.3 | 80 | 3×35 | |
| 232 | 250QJ32-322/14 | 322 | 55G | 114.3 | 3×35 | ||
| 233 | 250QJ32-345/15 | 345 | 63G | 130.9 | 3×50 | ||
| 234 | 250QJ32-368/16 | 368 | 63G | 130.9 | 3×50 | ||
| 235 | 250QJ32-391/17 | 391 | 63G | 130.9 | 3×70 | ||
| 236 | 250QJ32-414/18 | 414 | 75G | 152.3 | 3×70 | ||
| 237 | 250QJ32-437/19 | 437 | 75G | 152.3 | 3×70 | ||
| 238 | 250QJ32-460/20 | 460 | 75G | 152.3 | 3×70 | ||
| 239 | 250QJ32-483/21 | 483 | 90G | 182.8 | 3×95 | ||
| 240 | 250QJ32-506/22 | 506 | 90G | 182.8 | 3×95 | ||
| 241 | 250QJ32-529/23 | 529 | 90G | 182.8 | 3×95 | ||
| 242 | 250QJ32-552/24 | 552 | 90G | 182.8 | 3×95 | ||
| 243 | 250QJ32-575/25 | 575 | 100G | 203.1 | 3×95 | ||
| 244 | 250QJ32-598/26 | 598 | 100G | 203.1 | 3×95 | ||
| 245 | 250QJ50-20/1 | 50 | 20 | 5.5 | 13.6 | 65 | 3×4 |
| 246 | 250QJ50-40/2 | 40 | 9.2 | 21.7 | 3×4 | ||
| 247 | 250QJ50-60/3 | 60 | 13 | 29.8 | 3×6 | ||
| 248 | 250QJ50-80/4 | 80 | 18.5 | 41.6 | 3×10 | ||
| 249 | 250QJ50-100/4 | 100 | 22 | 47.9 | 80 | 3×10 | |
| 250 | 250QJ50-120/6 | 120 | 25 | 53.8 | 3×16 | ||
| 251 | 250QJ50-140/7 | 140 | 37 | 77.8 | 3×16 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 252 |
250QJ50-160/8
|
|
160 | 37 | 77.8 | 80 | 3×16 |
| 253 | 250QJ50-180/9 | 180 | 45 | 94.1 | 3×25 | ||
| 254 | 250QJ50-200/10 | 200 | 45 | 94.1 | 3×25 | ||
| 255 | 250QJ50-220/11 | 220 | 55G | 114.3 | 3×35 | ||
| 256 | 250QJ50-240/12 | 240 | 55G | 114.3 | 100 | 3×50 | |
| 257 | 250QJ50-260/13 | 260 | 63G | 130.9 | 3×50 | ||
| 258 | 250QJ50-280/14 | 280 | 63G | 130.9 | 3×50 | ||
| 259 | 250QJ50-300/15 | 300 | 63G | 130.9 | 3×50 | ||
| 260 | 250QJ50-320/16 | 50 | 320 | 75G | 152.3 | 3×70 | |
| 261 | 250QJ50-340/17 | 340 | 90G | 182.8 | 3×70 | ||
| 262 | 250QJ50-360/18 | 360 | 90G | 182.8 | 3×70 | ||
| 263 | 250QJ50-380/19 | 380 | 1OOG | 203.1 | 3×95 | ||
| 264 | 250QJ50-400/20 | 400 | 100G | 203.1 | 3×95 | ||
| 265 | 250QJ50-420/21 | 420 | 110G | 223.4 | 3×95 | ||
| 266 | 250QJ50-440/22 | 440 | 110G | 223.4 | 3×95 | ||
| 267 | 250QJ50-460/23 | 460 | 110G | 223.4 | 3×95 | ||
| 268 | 250QJ50-480/24 | 480 | 110G | 223.4 | 3-2×70 | ||
| 269 | 250QJ50-500/25 | 500 | 110G | 223.4 | 3-2×70 | ||
| 270 | 250QJ80-20/1 | 80 | 20 | 7.5 | 18 | 3×4 | |
| 271 | 250QJ80-40/9, | 40 | 15 | 33.9 | 3×6 | ||
| 272 | 250QJ80-60/3 | 60 | 22 | 47.9 | 3×10 | ||
| 273 | 250QJ80-80/4 | 80 | 30 | 64.2 | 3×16 | ||
| 274 | 250QJ80-100/5 | 100 | 37 | 77.8 | 3×25 | ||
| 275 | 250QJ80-120/6 | 120 | 45 | 94.1 | 3×25 | ||
| 276 | 250QJ80-140/7 | 140 | 55 | 114.3 | 3×25 | ||
| 277 | 250QJ80-160/8 | 160 | 55 | 114.3 | 3×25 | ||
| 278 | 250QJ80-180/9 | 180 | 63 | 130.9 | 3×35 | ||
| 279 | 250QJ80-200/1o | 200 | 75 | 152.3 | 3×50 | ||
| 280 | 250QJ80-220/11 | 220 | 90G | 182.8 | 3×70 | ||
| 281 | 250QJ80-240/12 | 240 | 90G | 182.8 | 3×70 | ||
| 282 | 250QJ80-260/13 | 260 | 90G | 182.8 | 3×70 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 283 | 250QJ80-280/14 | 80 | 280 | 100G | 203.1 | 100 | 3×95 |
| 284 | 250QJ80-300/15 |
300
|
110G | 223.4 | 3×95 | ||
| 285 | 250QJ80-320/16 | 320 | 110G | 223.4 | 3×95 | ||
| 286 | 250QJ100-18/1 | 100 | 18 | 7.5 | 18 | 3×4 | |
| 287 | 250QJ100-36/2 | 36 | 15 | 33.9 | 3×6 | ||
| 288 | 250QJ100-54/3 | 54 | 25 | 53.8 | 3×16 | ||
| 289 | 25093100-72/4 | 72 | 30 | 64.2 | 3×16 | ||
| 290 | 250QJ100-108/6 | 108 | 45 | 94.1 | 3×25 | ||
| 291 | 250QJ100-126/7 | 126 | 55 | 114.3 | 3×25 | ||
| 292 | 250QJ100-144/8 | 144 | 63 | 130.9 | 3×35 | ||
| 293 | 250QJ100-162/9 | 162 | 75 | 152.3 | 3×35 | ||
| 294 | 250QJ100-198/11 | 198 | 90G | 182.8 | 3×50 | ||
| 295 | 250QJ100-216/12 | 216 | 100G | 203.1 | 3×70 | ||
| 296 | 250QJ100-234/13 | 234 | 110G | 223.4 | 3×95 | ||
| 297 | 250QJ100-252/14 | 252 | 110G | 233.4 | 3×95 | ||
| 298 | 250QJ125-16/1 | 125 | 16 | 9.2 | 21.7 | 125 | 3×4 |
| 299 | 250QJ125-32/2 | 32 | 18.5 | 41.6 | 3×6 | ||
| 300 | 250QJ125-48/3 | 48 | 25 | 53.8 | 3×50 | ||
| 301 | 250QJ125-64/4 | 64 | 37 | 77.8 | 3×16 | ||
| 302 | 250QJ125-80/5 | 80 | 45 | 94.1 | 3×16 | ||
| 303 | 250QJ125-96/6 | 96 | 55 | 114.3 | 3×25 | ||
| 304 | 250QJ125-112/7 | 112 | 63 | 130.9 | 3×35 | ||
| 305 | 250QJ125-128/8 | 128 | 75 | 152.3 | 3×35 | ||
| 306 | 250QJ125-144/9 | 144 | 90G | 182.8 | 3×35 | ||
| 307 | 250QJ125-160/10 | 160 | 90G | 182.8 | 3×35 | ||
| 308 | 250QJ125-176/11 | 176 | 100G | 203.1 | 3×50 | ||
| 309 | 250QJ125-192/12 | 192 | 110G | 223.4 | 3×50 | ||
| 310 | 250QJ125-208/13 | 208 | 110G | 223.4 | 3×70 | ||
| 311 | 250QJ140-15/1 | 140 | 15 | 9.2 | 21.7 | 3×6 | |
| 312 | 250QJ140-30/2 | 30 | 18.5 | 41.6 | 3×6 | ||
| 313 | 250QJ140-45/3 | 45 | 30 | 64.2 | 3×16 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 314 | 250QJ140-60/4 | 140 | 60 | 37 | 77.8 | 125 | 3×16 |
| 315 | 250QJ140-75/5 | 75 | 45 | 94.1 | 3×16 | ||
| 316 | 250QJ140-90/6 | 90 | 55 | 114.3 | 3×25 | ||
| 317 | 250QJ140-105/7 | 105 | 63 | 130.9 | 3×35 | ||
| 318 | 250QJ140-120/8 | 120 | 75 | 152.3 | 3×35 | ||
| 319 | 250QJ140-150/10 | 150 | 90G | 182.8 | 3×35 | ||
| 320 | 250QJ140-165/11 | 165 | 100G | 203.1 | 3×50 | ||
| 321 | 250QJ140-180/12 | 180 | 110G | 223.4 | 3×70 | ||
| 322 | 250QJ160-15/1 | 160 | 15 | 11 | 25.8 | 3×6 | |
| 323 | 250QJ160-30/2 | 30 | 22 | 47.9 | 3×16 | ||
| 324 | 250QJ160-45/3 | 45 | 37 | 77.8 | 3×16 | ||
| 325 | 250QJ160-60/4 | 60 | 45 | 94.1 | 3×25 | ||
| 326 | 250QJ160-75/5 | 75 | 55 | 114.3 | 3×25 | ||
| 327 | 250QJ160-90/6 | 90 | 63 | ．130.9 | 3×35 | ||
| 328 | 250QJ160-105/7 | 105 | 75 | 152.3 | 3×35 | ||
| 329 | 250QJ160-120/8 | 120 | 90 | 182.8 | 3×35 | ||
| 330 | 250QJ160-135/9 | 135 | 90G | 182.8 | 3×35 | ||
| 331 | 250QJ160-150/10 | 150 | 100G | 203.1 | 3×50 | ||
| 332 | 300QJ200-20/1 | 200 | 20 | 18.5 | 41.6 | 125 | 3×6 |
| 333 | 300QJ200-40/2 | 40 | 37 | 77.8 | 3×16 | ||
| 334 | 300QJ200-60/3 | 60 | 55 | 114.3 | 3×25 | ||
| 335 | 300QJ200-80/4 | 80 | 75 | 152.3 | 3×35 | ||
| 336 | 300QJ200-100/5 | 100 | 90G | 182.8 | 3×50 | ||
| 337 | 300QJ200-120/6 | 120 | 110G | 220.8 | 3×50 | ||
| 338 | 300QJ200-140/7 | 140 | 125G | 249.5 | 3×70 | ||
| 339 | 300QJ200-160/8 | 160 | 140G | 277.8 | 3×70 | ||
| 340 | 300QJ230-20/1 | 230 | 20 | 22 | 47.9 | 150 | 3×6 |
| 340 | 300QJ230-40/2 | 40 | 45 | 94.1 | 3×16 | ||
| 342 | 300QJ230-60/3 | 60 | 75 | 154 | 3×25 | ||
| 343 | 300QJ230-80/4 | 80 | 90G | 183.8 | 3×35 | ||
| 344 | 300QJ230-100/5 | 100 | 90G | 183.8 | 3×50 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 345 | 300QJ250-15/1 | 250 | 15 | 18.5 | 41.6 | 150 | 3×10 |
| 346 | 300QJ250-30/2 | 30 | 37 | 77.8 | 3×16 | ||
| 347 | 300QJ250-24/1 | 24 | 30 | 64.2 | 3×16 | ||
| 348 | 300QJ250-48/2 | 48 | 55 | 114.3 | 3×25 | ||
| 349 | 300QJ250-72/3 | 72 | 90G | 183.8 | 3×35 | ||
| 350 | 300QJ320-28/1 | 320 | 28 | 45 | 94.1 | 200 | 3×16 |
| 351 | 300QJ320-56/2 | 56 | 75 | 152.3 | 3×35 | ||
| 352 | 300QJ320-84/3 | 84 | 125G | 249.5 | 3×50 | ||
| 353 | 350QJ250-25/1 | 250 | 25 | 30 | 64.2 | 150 | 3×25 |
| 354 | 350QJ250-50/2 | 50 | 63 | 130.9 | 3×35 | ||
| 355 | 350QJ250-75/3 | 75 | 90G | 182.8 | 3×50 | ||
| 356 | 350QJ250-100/4 | 100 | 125G | 249.5 | 3×50 | ||
| 357 | 350QJ320-30/1 | 320 | 30 | 45 | 94.1 | 200 | 3×16 |
| 358 | 350QJ320-60/2 | 60 | 90G | 182.8 | 3×50 | ||
| 359 | 350QJ320-90/3 | 90 | 145 | 277.8 | 3×50 | ||
| 360 | 350QJ320-20/1 | 20 | 30 | 64.2 | 3×16 | ||
| 361 | 350QJ320-40/2 | 40 | 63 | 130.9 | 3×35 | ||
| 362 | 350QJ500-20/1 | 500 | 20 | 45 | 94.1 | 3×25 | |
| 363 | 350QJ500-40/1 | 40 | 90G | 182.8 | 3×50 |
相關產品
相關文章
