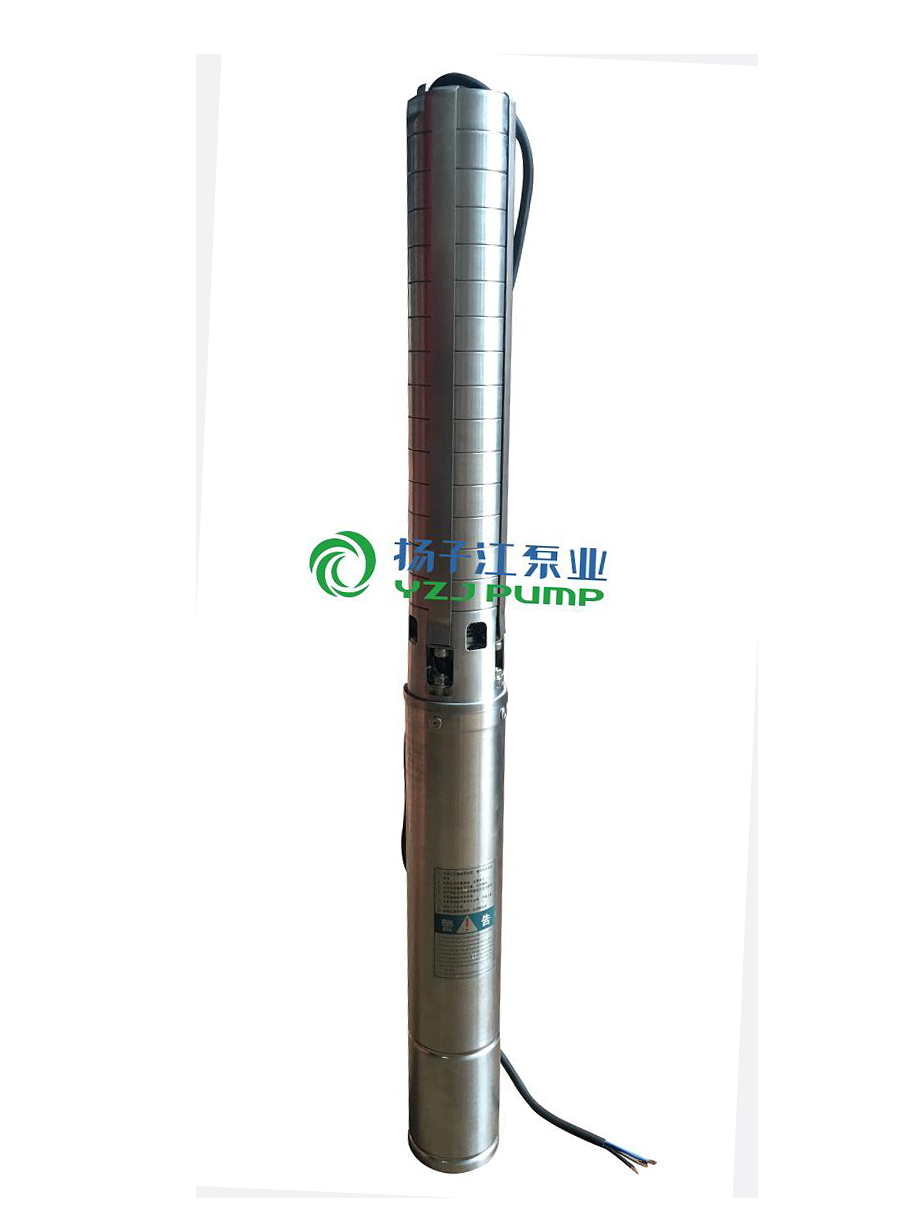

QJ型深井潛水電泵|不銹鋼深井泵
目錄
QJ潛水泵概述
QJ型深井潛水電泵是引進國外泵業公司領先的制泵技術生產的高性能耐磨型電泵，動力部份配用目前國際先進技術生產的水浸式不銹鋼潛水電機，對水質絕對無污染，是當前國內外深井泵之精品。選用優質不銹鋼外殼、軸芯、聯軸器、入水座和泵頭（或銅合金入水座、泵頭），高強度抗耐磨新型復合高分子材料葉輪和不銹鋼導流殼，全新"浮動式"結構葉輪在工作期間對電機無軸向壓力。特別適用于工礦業、農業、建筑業、養殖業、食品飲料業及家庭式（或高層送水使用）。
QJ潛水泵產品特點
1、電機、水泵一體，潛入水中運行，安全可靠。
2、對井管、揚水管無特殊要求(即：鋼管井、灰管井、土井等均可使用；在壓力許可下、鋼管、膠管、塑料管等均可作揚水管使用)。
3、安裝、使用、維護方便簡單，占地面積小、不需建造泵房。
4、結構簡單、節省原材料。
QJ潛水泵工作條件
1．QJ型深井潛水泵電源要求：
(1)額定頻率為50赫茲，電機端額定電壓應保證為380+5％伏的三相交流電源(若用戶電壓為660伏時需特殊定貨)。
(2)變壓器負載功率不應超過其容量的75％。
(3)變壓器距井較遠時，應考慮輸電線線壓降，對功率大于45KW的電機，要求變壓器到井口距離不超過20米，大于20米時，要求輸電線規格比配電纜規格大兩個等級，并考慮線壓降。
2．水質要求：
(1)一般無腐蝕性清水。
(2)水中含砂量不大于0.01％(質量比)。
(3)酸堿度PH值在6．5-8．5范圍內。
(4)水中氯離子含量不大于400毫克／升。
(5)硫化氫含量不大于1．5毫克／升。
(6)水溫不高于20℃。
3．井筒要求：
正直、光滑、不得有凸起或井管錯位現象，井內徑不小于相應的機座號。

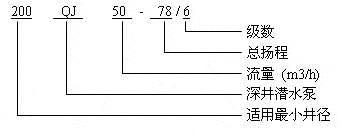

QJ潛水泵型號意義
性能參數選型表
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流A |
出水管直徑 |
配套電纜規格 |
|
1 |
1OOQJ2-50/10 |
2 |
40 |
0.75 |
2.0 |
40 |
3×1.5+1×1 |
|
2 |
100QJ2-70/14 |
70 |
1.1 |
3.1 |
3×1.5+1×1 |
||
|
3 |
100QJ2-80/16 |
80 |
1.1 |
3.1 |
3×1.5+1×1 |
||
|
4 |
100QJ2-100/20 |
100 |
1.5 |
3.8 |
3×1.5+1×1 |
||
|
5 |
100QJ2-110/22 |
110 |
1.5 |
3.8 |
3×1.5+1×1 |
||
|
6 |
100QJ2-140/28 |
140 |
1.5 |
3.8 |
3×1.5+1×1 |
||
|
7 |
100QJ2-150/30 |
150 |
2.2 |
5.6 |
3×1.5+1×1 |
||
|
8 |
1OOOJ2-160/32 |
160 |
2.2 |
5.6 |
3×2.5+1×1.5 |
||
|
9 |
100QJ2-190/38 |
190 |
2.2 |
5.6 |
3×2.5+1×1.5 |
||
|
10 |
1OOOJ2-200/40 |
200 |
3.0 |
7.3 |
3×4+1×2.5 |
||
|
11 |
100QJ3.2-40/6 |
2.2 |
40 |
0.75 |
2.0 |
40 |
3×1.5+1×1 |
|
12 |
1OOOJ3.2-54/8 |
54 |
0.75 |
2.0 |
3×1.5+1×1 |
||
|
13 |
100QJ3.2.68/10 |
68 |
1.1 |
3.1 |
3×1.5+1×1 |
||
|
14 |
100QJ3.2-72/11 |
72 |
1.1 |
3.1 |
3×1.5+1×1 |
||
|
15 |
1OOQJ3.2-99/15 |
99 |
1.5 |
3.8 |
3×1.5+1×1 |
||
|
16 |
1OOQJ3.2-108/16 |
108 |
2.2 |
5.6 |
3×1.5+1×1 |
||
|
17 |
100QJ3.2-135/20 |
135 |
2.2 |
5.6 |
3×2.5+1×1.5 |
||
|
18 |
1OOQJ3.2-144/21 |
144 |
3．O |
7.3 |
3×4+1×2.5 |
||
|
19 |
100QJ3.2-170/25 |
170 |
3.0 |
7.3 |
3×4+1×2.5 |
||
|
20 |
100QJ3.2-230/34 |
230 |
4.0 |
10.26 |
3×4+1×2.5 |
||
|
21 |
100QJ5-24/6 |
5 |
24 |
0.75 |
2.0 |
40 |
3×1.5+1×1 |
|
22 |
100QJ5-36/9 |
36 |
1.1 |
3.1 |
3×1.5+1×1 |
||
|
23 |
100QJ5-48/12 |
48 |
1.5 |
3.8 |
3×1.5+1×1 |
||
|
24 |
100QJ5-64/16 |
64 |
2.2 |
5.6 |
3×1.5+1×1 |
||
|
25 |
100QJ5-72/18 |
72 |
2.2 |
5.6 |
3×1.5+1×1 |
||
|
26 |
100QJ5-88/22 |
88 |
3.0 |
7.3 |
3×2.5+1×1.5 |
||
|
27 |
100QJ5-96/24 |
96 |
3.0 |
7.3 |
3×2.5+1×1.5 |
||
|
28 |
1OOQJ5-108/27 |
108 |
3.0 |
7.3 |
3×4+1×2.5 |
||
|
29 |
100QJ5-128/32 |
128 |
4.0 |
10.26 |
3×4+1×2.5 |
||
|
30 |
100QJ5-164/41 |
164 |
5.5 |
13.74 |
3×4+1×2.5 |
||
|
31 |
100QJ5-220/55 |
220 |
7.5 |
18.5 |
3×6+1×4 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
32 |
1OOQJ8-15/3 |
8 |
15 |
0.75 |
2.0 |
50 |
3×1.5+1×1 |
|
33 |
1OOQJ8-20/4 |
20 |
1.1 |
3.1 |
3×1.5+1×1 |
||
|
34 |
1OOQJ8-30/6 |
30 |
1.5 |
3.8 |
3×1.5+1×1 |
||
|
35 |
1OOQJ8-40/8 |
40 |
99 |
5.6 |
3×1.5+1×1 |
||
|
36 |
1OOQJ8-50/10 |
50 |
3.0 |
7.3 |
3×2.5+1×1.5 |
||
|
37 |
1OOOJ8-60/12 |
60 |
3．O |
7.3 |
3×2.5+1×1.5 |
||
|
38 |
1OOQJ8-70/14 |
70 |
3.0 |
7.3 |
3×2.5+1×1.5 |
||
|
39 |
1OOQJ8-85/17 |
85 |
4.0 |
10.26 |
3×2.5+1×1.5 |
||
|
40 |
1OOQJ8-95/19 |
95 |
5.5 |
13.74 |
3×4+1×2.5 |
||
|
41 |
1OOQJ8-100/20 |
100 |
5.5 |
13.74 |
3×4+1×2.5 |
||
|
42 |
1OOQJ8-110/22 |
110 |
5.5 |
13.74 |
3×4+1×2.5 |
||
|
43 |
1OOOJ8-135/27 |
135 |
7.5 |
18.5 |
3×4+1×2.5 |
||
|
44 |
1OOQJ8-150/30 |
150 |
7.5 |
18.5 |
3×4+1×2.5 |
||
|
45 |
1OOQJ10-48/1o |
10 |
48 |
2.2 |
5.6 |
50 |
3×1.5+1×1 |
|
46 |
1OOQJ10-60/13 |
60 |
3.0 |
7.3 |
3×2.5+1×1.5 |
||
|
47 |
1OOQJ10-80/17 |
80 |
4.0 |
10.26 |
3×2.5+1×1.5 |
||
|
48 |
1OOQJ10-108/22 |
108 |
5.5 |
13.74 |
3×4+1×2.5 |
||
|
49 |
1OOQJ10-130/27 |
130 |
7.5 |
18.5 |
3×4+1×2.5 |
||
|
50 |
1OOQJ15-34/10 |
15 |
34 |
3．O |
7.3 |
50 |
3×2.5+1×1.5 |
|
51 |
100QJ15-52/14 |
52 |
4.0 |
10.26 |
3×2.5+1×1.5 |
||
|
52 |
1OOQJ15-58/18 |
58 |
5.5 |
13.74 |
3×4+1×2.5 |
||
|
53 |
1OOQJ15-82/24 |
82 |
7.5 |
18.5 |
3×4+1×2.5 |
||
|
55 |
150QJ5-85/12 |
5 |
85 |
3 |
7.9 |
50 |
3×4 |
|
56 |
150QJ5-100/14 |
100 |
3 |
7.9 |
3×4 |
||
|
57 |
150QJ5-150/21 |
150 |
4 |
10.26 |
3×4 |
||
|
58 |
150QJ5-200/28 |
200 |
5.5 |
13.74 |
3×6 |
||
|
59 |
150QJ5-250/35 |
250 |
7.5 |
18.5 |
3×6 |
||
|
60 |
150QJ5-300/42 |
300 |
9.2 |
22.12 |
3×10 |
||
|
61 |
150QJ10-50/7 |
10 |
50 |
3 |
7.9 |
3×4 |
|
|
62 |
150QJ10-78/11 |
78 |
4 |
10.26 |
3×4 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
63 |
150QJ10-100/14 |
10 |
100 |
5.5 |
13.74 |
50 |
3×4 |
|
64 |
150QJ10-128/18 |
128 |
7.5 |
18.5 |
3×6 |
||
|
65 |
150QJ10-150/21 |
150 |
7.5 |
18.5 |
3×6 |
||
|
66 |
150QJ10-178/25 |
178 |
9.2 |
22.12 |
3×6 |
||
|
67 |
150QJ10-200/28 |
200 |
11 |
26.28 |
3×10 |
||
|
68 |
150QJ10-250/35 |
250 |
13 |
30.87 |
3×10 |
||
|
69 |
150QJ10-300/42 |
300 |
15 |
35.62 |
3×16 |
||
|
70 |
150QJ20-26/4 |
20 |
26 |
3 |
7.9 |
3×4 |
|
|
71 |
150QJ20-33/5 |
33 |
3 |
7.9 |
3×4 |
||
|
72 |
150QJ20-39/6 |
39 |
4 |
10.26 |
3×4 |
||
|
73 |
150QJ20-46/7 |
46 |
5.5 |
13.74 |
3×4 |
||
|
74 |
150QJ20-52/8 |
52 |
5.5 |
13.74 |
3×4 |
||
|
75 |
150QJ20-59/9 |
59 |
5.5 |
13.74 |
3×4 |
||
|
76 |
150Q220-65/10 |
65 |
7.5 |
18.5 |
3×4 |
||
|
77 |
150QJ20-72/11 |
72 |
7.5 |
18.5 |
3×4 |
||
|
78 |
150QJ20-78/12 |
78 |
7.5 |
18.5 |
3×6 |
||
|
79 |
150QJ201-85/13 |
85 |
9.2 |
22.12 |
3×6 |
||
|
80 |
150QJ20-91/14 |
91 |
9.2 |
22.12 |
3×6 |
||
|
81 |
150QJ20-98/15 |
98 |
9.2 |
22.12 |
3×6 |
||
|
82 |
150QJ20-104/16 |
104 |
11 |
26.28 |
3×6 |
||
|
83 |
150QJ20-111/17 |
111 |
11 |
26.28 |
3×6 |
||
|
84 |
150QJ20-117/17 |
117 |
13 |
30.87 |
3×6 |
||
|
85 |
150QJ20-124/19 |
124 |
13 |
30.87 |
3×6 |
||
|
86 |
150QJ20-130/20 |
130 |
13 |
30.87 |
3×6 |
||
|
87 |
150QJ20-137/21 |
137 |
15 |
35.62 |
3×6 |
||
|
88 |
150QJ20-143/22 |
143 |
15 |
35.62 |
3×6 |
||
|
89 |
150QJ20-150/23 |
150 |
15 |
35.62 |
3×6 |
||
|
90 |
150QJ20-156/24 |
156 |
15 |
35.62 |
3×10 |
||
|
91 |
150Q220-163/25 |
163 |
15 |
35.62 |
3×10 |
||
|
92 |
150QJ25-24/3 |
25 |
24 |
3 |
7.9 |
65 |
3×4 |
|
93 |
150QJ25-32/4 |
32 |
4 |
10.3 |
3×4 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
94 |
150QJ25-40/5 |
25 |
40 |
5.5 |
13.7 |
65 |
3×4 |
|
95 |
150QJ25-48/6 |
48 |
5.5 |
13.7 |
3×4 |
||
|
96 |
150QJ25-56/7 |
56 |
7.5 |
18.5 |
3×4 |
||
|
97 |
150QJ25--64/8 |
64 |
7.5 |
18.5 |
3×4 |
||
|
98 |
150QJ25-72/9 |
72 |
9.2 |
18.5 |
3×6 |
||
|
99 |
1509325-80/10 |
80 |
9.2 |
22.1 |
3×6 |
||
|
100 |
150QJ25-88/11 |
88 |
11 |
26.3 |
3×6 |
||
|
101 |
150QJ25-96/12 |
96 |
11 |
26.3 |
3×6 |
||
|
102 |
150QJ25-104/13 |
104 |
13 |
30.9 |
3×6 |
||
|
103 |
150QJ25-112/14 |
112 |
13 |
30.9 |
3×6 |
||
|
104 |
150QJ25-120/15 |
120 |
15 |
35.6 |
3×6 |
||
|
105 |
150QJ25-128/16 |
128 |
15 |
35.6 |
3×6 |
||
|
106 |
150QJ25-136/17 |
136 |
18.5 |
44.0 |
3×10 |
||
|
107 |
150QJ25-144/18 |
144 |
18.5 |
44.0 |
3×10 |
||
|
108 |
150QJ25-152/19 |
152 |
18.5 |
44.0 |
3×10 |
||
|
109 |
150QJ32-18/3 |
32 |
18 |
3 |
7.9 |
65 |
3×4 |
|
110 |
150QJ32-24/4 |
24 |
4 |
10.26 |
3×4 |
||
|
111 |
150QJ32-30/5 |
30 |
5.5 |
13.74 |
3×4 |
||
|
112 |
150QJ32-36/6 |
36 |
5.5 |
13.74 |
3×4 |
||
|
113 |
150QJ32-42/7 |
42 |
7.5 |
18.5 |
3×6 |
||
|
114 |
150QJ32-54/9 |
54 |
9.2 |
22.12 |
3×6 |
||
|
115 |
150QJ32-66/11 |
66 |
11 |
26.28 |
3×6 |
||
|
116 |
150QJ32-72/12 |
72 |
13 |
30.87 |
3×6 |
||
|
117 |
150QJ32-84/14 |
84 |
13 |
30.87 |
3×6 |
||
|
118 |
150QJ32-90/15 |
90 |
15 |
35.62 |
3×6 |
||
|
119 |
150QJ32-96/16 |
96 |
15 |
35.62 |
3×6 |
||
|
120 |
150QJ32-108/18 |
108 |
18.5 |
44.0 |
3×10 |
||
|
121 |
150QJ50-6/1 |
50 |
6 |
3 |
7.9 |
80 |
3×4 |
|
122 |
150QJ50-12/2 |
12 |
4 |
10.26 |
3×4 |
||
|
123 |
150QJ50-18/3 |
18 |
5.5 |
13.74 |
3×4 |
||
|
124 |
150QJ50-24/4 |
24 |
7.5 |
18.5 |
3×6 |
||
|
125 |
150Qj50-30/5 |
30 |
9.2 |
22.12 |
3×6 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
126 |
150QJ501-36/6 |
50 |
36 |
9.2 |
22.12 |
80 |
3×6 |
|
127 |
150QJ501-42/7 |
42 |
11 |
26.28 |
3×6 |
||
|
128 |
150QJ50-48/8 |
48 |
13 |
30.87 |
3×6 |
||
|
129 |
150QJ50-54/9 |
54 |
15 |
35.62 |
3×6 |
||
|
130 |
150QJ50-60/10 |
60 |
18.5 |
44.0 |
3×6 |
||
|
131 |
150QJ50-66/11 |
66 |
18.5 |
44.0 |
3×6 |
||
|
132 |
150QJ50-72/12 |
72 |
18.5 |
44.0 |
3×10 |
|
133 |
200QJ20-40/3 |
20 |
40 |
4 |
10.1 |
50 |
3×4 |
|
134 |
200QJ20-54/4 |
54 |
5.5 |
13.6 |
3×4 |
||
|
135 |
200QJ20-67/5 |
67 |
7.5 |
18 |
3×4 |
||
|
136 |
200QJ20-81/6 |
81 |
7.5 |
18 |
3×4 |
||
|
137 |
200QJ20-93/7 |
93 |
Q9 |
21.7 |
3×6 |
||
|
138 |
200QJ20-108/8 |
108 |
11 |
25.8 |
3×6 |
||
|
139 |
200QJ20-121/9 |
121 |
13 |
29.8 |
3×6 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
140 |
200QJ20-133/10 |
20 |
133 |
15 |
33.9 |
50 |
3×6 |
|
141 |
200QJ20-148/11 |
148 |
15 |
33.9 |
3×6 |
||
|
142 |
200QJ20-175/13 |
175 |
18.5 |
41.6 |
3×10 |
||
|
143 |
200QJ20-202/15 |
202 |
22 |
48.2 |
3×16 |
||
|
144 |
200QJ20-243/18 |
243 |
25 |
54.5 |
65 |
3×16 |
|
|
145 |
200QJ20-270/20 |
270 |
30 |
65.4 |
3×25 |
||
|
146 |
200QJ20-297/22 |
297 |
30 |
65.4 |
3×25 |
||
|
147 |
200QJ20-338/25 |
338 |
37 |
79.7 |
3×25 |
||
|
148 |
200QJ20-350/26 |
350 |
37 |
79.7 |
3×35 |
||
|
149 |
200QJ20-363/27 |
363 |
37 |
79.7 |
3×35 |
||
|
150 |
200QJ20-400/30 |
400 |
45 |
96.9 |
3×50 |
||
|
151 |
200QJ20-450/34 |
450 |
45 |
96.9 |
3×50 |
||
|
152 |
200QJ32-26/2 |
32 |
26 |
4 |
10.1 |
65 |
3×4 |
|
153 |
200QJ32-39/3 |
39 |
5.5 |
13.6 |
3×4 |
||
|
154 |
200QJ332-52/4 |
52 |
7.5 |
18 |
3×4 |
||
|
155 |
200QJ32-65/5 |
65 |
11 |
25.8 |
3×6 |
||
|
156 |
200QJ32-78/6 |
78 |
11 |
25.8 |
3×6 |
||
|
157 |
200QJ32-91/7 |
91 |
13 |
29.8 |
3×6 |
||
|
158 |
200QJ32-104/8 |
104 |
15 |
33.9 |
3×6 |
||
|
159 |
200QJ32-130/10 |
130 |
18.5 |
41.6 |
3×10 |
||
|
160 |
200QJ32-156/12 |
156 |
25 |
54.5 |
3×16 |
||
|
161 |
200QJ32-195/15 |
195 |
30 |
65.4 |
3×16 |
||
|
162 |
200QJ32-234/18 |
234 |
37 |
79.7 |
3×25 |
||
|
163 |
200QJ32-247/19 |
247 |
37 |
79.7 |
3×25 |
||
|
164 |
200QJ32-260/20 |
260 |
45 |
96.9 |
3×25 |
||
|
165 |
200QJ32-286/22 |
286 |
45G |
96.9 |
3×35 |
||
|
167 |
200QJ40-26/2 |
40 |
26 |
5.5 |
13.6 |
3×4 |
|
|
168 |
200QJ40-39/3 |
39 |
7.5 |
18 |
3×4 |
||
|
169 |
200QJ40-52/4 |
52 |
q9 |
21.7 |
3×6 |
||
|
170 |
200QJ40-65/5 |
65 |
11 |
25.8 |
3×6 |
||
|
171 |
200QJ40-78/6 |
78 |
15 |
33.9 |
3×6 |
||
|
172 |
200QJ40-104/8 |
104 |
18.5 |
41.6 |
3×10 |
||
|
173 |
200QJ40-117/9 |
117 |
22 |
48.2 |
3×10 |
||
|
174 |
200QJ40-143/11 |
143 |
25 |
54.5 |
3×10 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
175 |
200QJ40-169/13 |
40 |
169 |
30 |
65.4 |
65 |
3×16 |
|
176 |
200QJ40-182/14 |
182 |
37 |
79.7 |
3×16 |
||
|
177 |
200QJ40-208/16 |
208 |
37G |
79.7 |
3×25 |
||
|
178 |
200QJ40-234/18 |
234 |
45G |
96.9 |
3×25 |
||
|
179 |
200QJ40-247/19 |
247 |
45G |
96.9 |
3×35 |
||
|
180 |
200QJ50-13/1 |
50 |
13 |
4 |
10.1 |
80 |
3×4 |
|
181 |
200QJ50-26/2 |
26 |
5.5 |
13.6 |
3×4 |
||
|
182 |
200QJ50-39/3 |
39 |
9.2 |
21.7 |
3×4 |
||
|
183 |
200QJ50-52/4 |
52 |
11 |
25.8 |
3×6 |
||
|
184 |
200QJ50-65/5 |
65 |
15 |
33.9 |
3×6 |
||
|
185 |
200QJS0-78/6 |
78 |
18.5 |
41.6 |
3×6 |
||
|
186 |
200QJ50-91/7 |
91 |
22 |
48.2 |
3×10 |
||
|
187 |
200QJ50-104/8 |
104 |
25 |
54.5 |
3×10 |
||
|
188 |
200QJ50-117/9 |
117 |
30 |
65.4 |
3×10 |
||
|
189 |
200QJ50-130/1O |
130 |
30 |
65.4 |
3×16 |
||
|
190 |
200QJ50-156/12 |
156 |
37 |
79.7 |
3×16 |
||
|
191 |
200QJ50-182/14 |
182 |
45G |
96.9 |
3×25 |
||
|
192 |
200QJ50-195/15 |
195 |
45G |
96.9 |
3×25 |
||
|
193 |
200QJ63-12/1 |
63 |
12 |
4 |
10.1 |
80 |
3×4 |
|
194 |
200QJ63-24/2 |
24 |
7.5 |
18 |
3×4 |
||
|
195 |
200QJ63-36/3 |
36 |
11 |
25.8 |
3×6 |
||
|
196
|
200QJ63-48/4 |
48 |
15 |
33.9 |
3×6 |
||
|
197 |
200QJ63-60/5 |
60 |
18.5 |
41.6 |
3×10 |
||
|
198 |
200QJ63-72/6 |
72 |
99 |
48.2 |
3×10 |
||
|
199 |
200QJ63-84/7 |
84 |
9氏 |
54.5 |
3×10 |
||
|
200 |
200QJ63-96/8 |
96 |
30 |
65.4 |
3×16 |
||
|
201 |
200QJ63-108/9 |
108 |
30 |
65.4 |
3×16 |
||
|
202 |
200QJ63-120/10 |
120 |
37 |
79.7 |
3×25 |
||
|
203 |
200QJ63-144/12 |
144 |
45 |
96.9 |
3×25 |
||
|
204 |
200QJ80-11/1 |
80 |
11 |
4 |
10.1 |
100 |
3×4 |
|
205 |
200QJ80-22/1 |
22- |
7.5 |
18 |
3×4 |
||
|
206 |
200QJ80-33/3 |
33 |
11 |
25.8 |
3×6 |
||
|
207 |
200QJ80-44/4 |
44 |
15 |
33.9 |
3×6 |
||
|
208 |
200QJ80-55/5 |
55 |
18.5 |
41.6 |
3×10 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
209 |
200QJ80-66/6 |
80 |
66 |
22 |
48.2 |
100 |
3×10 |
|
210 |
200QJ801-77/7 |
77 |
30 |
65.4 |
3×16 |
||
|
211 |
200QJ80-88/8 |
88 |
37 |
79.7 |
3×16 |
||
|
212 |
2000J80-99/9 |
99 |
37 |
79.7 |
3×16 |
||
|
213 |
200QJ80-121/11 |
121 |
45 |
96.9 |
3×25 |
||
|
214 |
250QJ32-138/6 |
32 |
138 |
22 |
47.9 |
65 |
3×10 |
|
215 |
250QJ32-161/7 |
161 |
25 |
53.8 |
3×16 |
||
|
216 |
250QJ32-184/8 |
184 |
30 |
64.2 |
3×16 |
||
|
217 |
250QJ32-207/9 |
207 |
37 |
77.8 |
3×16 |
||
|
218 |
250QJ32-230/10 |
230 |
37 |
77.8 |
3×25 |
||
|
219 |
250QJ32-253/11 |
253 |
45 |
94.1 |
3×25 |
||
|
220 |
250QJ32-276/12 |
276 |
45 |
94.1 |
3×25 |
||
|
231 |
250QJ32-300/13 |
300 |
55G |
114.3 |
80 |
3×35 |
|
|
232 |
250QJ32-322/14 |
322 |
55G |
114.3 |
3×35 |
||
|
233 |
250QJ32-345/15 |
345 |
63G |
130.9 |
3×50 |
||
|
234 |
250QJ32-368/16 |
368 |
63G |
130.9 |
3×50 |
||
|
235 |
250QJ32-391/17 |
391 |
63G |
130.9 |
3×70 |
||
|
236 |
250QJ32-414/18 |
414 |
75G |
152.3 |
3×70 |
||
|
237 |
250QJ32-437/19 |
437 |
75G |
152.3 |
3×70 |
||
|
238 |
250QJ32-460/20 |
460 |
75G |
152.3 |
3×70 |
||
|
239 |
250QJ32-483/21 |
483 |
90G |
182.8 |
3×95 |
||
|
240 |
250QJ32-506/22 |
506 |
90G |
182.8 |
3×95 |
||
|
241 |
250QJ32-529/23 |
529 |
90G |
182.8 |
3×95 |
||
|
242 |
250QJ32-552/24 |
552 |
90G |
182.8 |
3×95 |
||
|
243 |
250QJ32-575/25 |
575 |
100G |
203.1 |
3×95 |
||
|
244 |
250QJ32-598/26 |
598 |
100G |
203.1 |
3×95 |
||
|
245 |
250QJ50-20/1 |
50 |
20 |
5.5 |
13.6 |
65 |
3×4 |
|
246 |
250QJ50-40/2 |
40 |
9.2 |
21.7 |
3×4 |
||
|
247 |
250QJ50-60/3 |
60 |
13 |
29.8 |
3×6 |
||
|
248 |
250QJ50-80/4 |
80 |
18.5 |
41.6 |
3×10 |
||
|
249 |
250QJ50-100/4 |
100 |
22 |
47.9 |
80 |
3×10 |
|
|
250 |
250QJ50-120/6 |
120 |
25 |
53.8 |
3×16 |
||
|
251 |
250QJ50-140/7 |
140 |
37 |
77.8 |
3×16 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
252 |
250QJ50-160/8 |
|
160 |
37 |
77.8 |
80 |
3×16 |
|
253 |
250QJ50-180/9 |
180 |
45 |
94.1 |
3×25 |
||
|
254 |
250QJ50-200/10 |
200 |
45 |
94.1 |
3×25 |
||
|
255 |
250QJ50-220/11 |
220 |
55G |
114.3 |
3×35 |
||
|
256 |
250QJ50-240/12 |
240 |
55G |
114.3 |
100 |
3×50 |
|
|
257 |
250QJ50-260/13 |
260 |
63G |
130.9 |
3×50 |
||
|
258 |
250QJ50-280/14 |
280 |
63G |
130.9 |
3×50 |
||
|
259 |
250QJ50-300/15 |
300 |
63G |
130.9 |
3×50 |
||
|
260 |
250QJ50-320/16 |
50 |
320 |
75G |
152.3 |
3×70 |
|
|
261 |
250Qj50-340/17 |
340 |
90G |
182.8 |
3×70 |
||
|
262 |
250QJ50-360/18 |
360 |
90G |
182.8 |
3×70 |
||
|
263 |
250QJ50-380/19 |
380 |
1OOG |
203.1 |
3×95 |
||
|
264 |
250QJ50-400/20 |
400 |
100G |
203.1 |
3×95 |
||
|
265 |
250QJ50-420/21 |
420 |
110G |
223.4 |
3×95 |
||
|
266 |
250QJ50-440/22 |
440 |
110G |
223.4 |
3×95 |
||
|
267 |
250QJ50-460/23 |
460 |
110G |
223.4 |
3×95 |
||
|
268 |
250QJ50-480/24 |
480 |
110G |
223.4 |
3-2×70 |
||
|
269 |
250QJ50-500/25 |
500 |
110G |
223.4 |
3-2×70 |
||
|
270 |
250QJ80-20/1 |
80 |
20 |
7.5 |
18 |
3×4 |
|
|
271 |
250QJ80-40/9, |
40 |
15 |
33.9 |
3×6 |
||
|
272 |
250QJ80-60/3 |
60 |
22 |
47.9 |
3×10 |
||
|
273 |
250QJ80-80/4 |
80 |
30 |
64.2 |
3×16 |
||
|
274 |
250QJ80-100/5 |
100 |
37 |
77.8 |
3×25 |
||
|
275 |
250QJ801-120/6 |
120 |
45 |
94.1 |
3×25 |
||
|
276 |
250QJ80-140/7 |
140 |
55 |
114.3 |
3×25 |
||
|
277 |
250QJ80-160/8 |
160 |
55 |
114.3 |
3×25 |
||
|
278 |
250QJ80-180/9 |
180 |
63 |
130.9 |
3×35 |
||
|
279 |
250QJ80-200/1o |
200 |
75 |
152.3 |
3×50 |
||
|
280 |
250QJ80-220/11 |
220 |
90G |
182.8 |
3×70 |
||
|
281 |
250QJ80-240/12 |
240 |
90G |
182.8 |
3×70 |
||
|
282 |
250QJ80-260/13 |
260 |
90G |
182.8 |
3×70 |
|
序號 |
型號 |
流量(m3/h) |
揚程 |
電機功率(KW) |
額定電流(A) |
出水管直徑 |
配套電纜規格 |
|
283 |
250QJ80-280/14 |
80 |
280 |
100G |
203.1 |
100 |
3×95 |
|
284 |
250QJ80-300/15 |
300 |
110G |
223.4 |
3×95 |
||
|
285 |
250QJ80-320/16 |
320 |
110G |
223.4 |
3×95 |
||
|
286 |
250QJ100-18/1 |
100 |
18 |
7.5 |
18 |
3×4 |
|
|
287 |
250QJ100-36/2 |
36 |
15 |
33.9 |
3×6 |
||
|
288 |
250QJ100-54/3 |
54 |
25 |
53.8 |
3×16 |
||
|
289 |
250QJ100-72/4 |
72 |
30 |
64.2 |
3×16 |
||
|
290 |
250QJ100-108/6 |
108 |
45 |
94.1 |
3×25 |
||
|
291 |
250QJ100-126/7 |
126 |
55 |
114.3 |
3×25 |
||
|
292 |
250QJ100-144/8 |
144 |
63 |
130.9 |
3×35 |
||
|
293 |
250QJ100-162/9 |
162 |
75 |
152.3 |
3×35 |
||
|
294 |
250QJ100-198/11 |
198 |
90G |
182.8 |
3×50 |
||
|
295 |
250QJ100-216/12 |
216 |
100G |
203.1 |
3×70 |
||
|
296 |
250QJ100-234/13 |
234 |
110G |
223.4 |
3×95 |
||
|
297 |
250QJ100-252/14 |
252 |
110G |
233.4 |
3×95 |
||
|
298 |
250QJ125-16/1 |
125 |
16 |
9.2 |
21.7 |
125 |
3×4 |
|
299 |
250QJ1251-32/2 |
32 |
18.5 |
41.6 |
3×6 |
||
|
300 |
250QJ125-48/3 |
48 |
25 |
53.8 |
3×50 |
||
|
301 |
250QJ125-64/4 |
64 |
37 |
77.8 |
3×16 |
||
|
302 |
250QJ125-80/5 |
80 |
45 |
94.1 |
3×16 |
||
|
303 |
250QJ125-96/6 |
96 |
55 |
114.3 |
3×25 |
||
|
304 |
250QJ125-112/7 |
112 |
63 |
130.9 |
3×35 |
||
|
305 |
250QJ125-128/8 |
128 |
75 |
152.3 |
3×35 |
||
|
306 |
250QJ125-144/9 |
144 |
90G |
182.8 |
3×35 |
||
|
307 |
250QJ125-160/10 |
160 |
90G |
182.8 |
3×35 |
||
|
308 |
250QJ125-176/11 |
176 |
100G |
203.1 |
3×50 |
||
|
309 |
250QJ125-192/12 |
192 |
110G |
223.4 |
3×50 |
||
|
310 |
250QJ125-208/13 |
208 |
110G |
223.4 |
3×70 |
||
|
311 |
250QJ140-15/1 |
140 |
15 |
9.2 |
21.7 |
3×6 |
|
|
312 |
250QJ140-30/2 |
30 |
18.5 |
41.6 |
3×6 |
||
|
313 |
250QJ140-45/3 |
45 |
30 |
64.2 |
3×16 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
| 314 | 250QJ140-60/4 |
140 |
60 | 37 | 77.8 |
125 |
3×16 |
| 315 | 250QJ140-75/5 | 75 | 45 | 94.1 | 3×16 | ||
| 316 | 250QJ140-90/6 | 90 | 55 | 114.3 | 3×25 | ||
| 317 | 250QJ140-105/7 | 105 | 63 | 130.9 | 3×35 | ||
| 318 | 250QJ140-120/8 | 120 | 75 | 152.3 | 3×35 | ||
| 319 | 250QJ140-150/10 | 150 | 90G | 182.8 | 3×35 | ||
| 320 | 250QJ140-165/11 | 165 | 100G | 203.1 | 3×50 | ||
| 321 | 250QJ140-180/12 | 180 | 110G | 223.4 | 3×70 | ||
| 322 | 250QJ160-15/1 |
160 |
15 | 11 | 25.8 | 3×6 | |
| 323 | 250QJ160-30/2 | 30 | 22 | 47.9 | 3×16 | ||
| 324 | 250QJ160-45/3 | 45 | 37 | 77.8 | 3×16 | ||
| 325 | 250QJ160-60/4 | 60 | 45 | 94.1 | 3×25 | ||
| 326 | 250QJ160-75/5 | 75 | 55 | 114.3 | 3×25 | ||
| 327 | 250QJ160-90/6 | 90 | 63 | ．130.9 | 3×35 | ||
| 328 | 250QJ160-105/7 | 105 | 75 | 152.3 | 3×35 | ||
| 329 | 250QJ160-120/8 | 120 | 90 | 182.8 | 3×35 | ||
| 330 | 250QJ160-135/9 | 135 | 90G | 182.8 | 3×35 | ||
| 331 | 250QJ160-150/10 | 150 | 100G | 203.1 | 3×50 | ||
| 332 | 300QJ200-20/1 |
200 |
20 | 18.5 | 41.6 |
125 |
3×6 |
| 333 | 300QJ200-40/2 | 40 | 37 | 77.8 | 3×16 | ||
| 334 | 300QJ200-60/3 | 60 | 55 | 114.3 | 3×25 | ||
| 335 | 300QJ200-80/4 | 80 | 75 | 152.3 | 3×35 | ||
| 336 | 300QJ200-100/5 | 100 | 90G | 182.8 | 3×50 | ||
| 337 | 300QJ200-120/6 | 120 | 110G | 220.8 | 3×50 | ||
| 338 | 300QJ200-140/7 | 140 | 125G | 249.5 | 3×70 | ||
| 339 | 300QJ200-160/8 | 160 | 140G | 277.8 | 3×70 | ||
| 340 | 300QJ230-20/1 |
230 |
20 | 22 | 47.9 |
150 |
3×6 |
|
340
|
300QJ230-40/2 | 40 | 45 | 94.1 | 3×16 | ||
| 342 | 300QJ230-60/3 | 60 | 75 | 154 | 3×25 | ||
| 343 | 300QJ230-80/4 | 80 | 90G | 183.8 | 3×35 | ||
| 344 | 300QJ230-100/5 | 100 | 90G | 183.8 | 3×50 |
| 序號 | 型號 | 流量(m3/h) | 揚程 | 電機功率(KW) | 額定電流(A) |
出水管直徑 mm |
配套電纜規格 |
|
345 |
300QJ250-15/1 |
250 |
15 | 18.5 | 41.6 |
150 |
3×10 |
| 346 | 300QJ250-30/2 | 30 | 37 | 77.8 | 3×16 | ||
|
347 |
300QJ250-24/1 | 24 | 30 | 64.2 | 3×16 | ||
|
348 |
300QJ250-48/2 | 48 | 55 | 114.3 | 3×25 | ||
|
349 |
300QJ250-72/3 | 72 | 90G | 183.8 | 3×35 | ||
|
350 |
300QJ320-28/1 |
320 |
28 | 45 | 94.1 |
200 |
3×16 |
|
351 |
300QJ320-56/2 | 56 | 75 | 152.3 | 3×35 | ||
|
352 |
300QJ320-84/3 | 84 | 125G | 249.5 | 3×50 | ||
|
353 |
350QJ250-25/1 |
250 |
25 | 30 | 64.2 |
150 |
3×25 |
|
354 |
350QJ250-50/2 | 50 | 63 | 130.9 | 3×35 | ||
|
355 |
350QJ250-75/3 | 75 | 90G | 182.8 | 3×50 | ||
|
356 |
350QJ250-100/4 | 100 | 125G | 249.5 | 3×50 | ||
|
357 |
350QJ320-30/1 |
320 |
30 | 45 | 94.1 |
200 |
3×16 |
|
358 |
350QJ320-60/2 | 60 | 90G | 182.8 | 3×50 | ||
|
359 |
350QJ320-90/3 | 90 | 145 | 277.8 | 3×50 | ||
|
360 |
350QJ320-20/1 | 20 | 30 | 64.2 | 3×16 | ||
|
361 |
350QJ320-40/2 | 40 | 63 | 130.9 | 3×35 | ||
|
362 |
350QJ500-20/1 |
500 |
20 | 45 | 94.1 | 3×25 | |
|
363 |
350QJ500-40/1 | 40 | 90G | 182.8 | 3×50 |
